Product Overview: Texas Instruments OPA2171AQDGKRQ1

The OPA2171AQDGKRQ1 from Texas Instruments is a robust, automotive-grade operational amplifier designed to meet the stringent requirements of the automotive industry. This high-performance op-amp is part of TI's "Q1" series, specifically engineered for automotive applications such as sensor amplification, power supply control, and motor control in the harsh environments found in vehicles.

Key Features

• Wide Supply Range: The OPA2171AQDGKRQ1 operates from a 4.5V to 36V single supply or ±2.25V to ±18V dual supply, providing designers with flexibility in various automotive voltage environments.
• Low Quiescent Current: With a typical low quiescent current of 475 µA, this op-amp is suitable for always-on applications, contributing to energy efficiency in automotive systems.
• High Common-Mode Rejection Ratio (CMRR): Featuring a CMRR of 114 dB, the device ensures accurate signal amplification by minimizing the effect of unwanted common-mode signals.
• Extended Temperature Range: The OPA2171AQDGKRQ1 is designed to operate in a wide temperature range from -40°C to +125°C, making it reliable in the extreme thermal conditions encountered in automotive applications.
• Robust ESD Protection: This op-amp is equipped with an Electrostatic Discharge (ESD) protection system, ensuring resilience against sudden voltage spikes.

Package and Quality

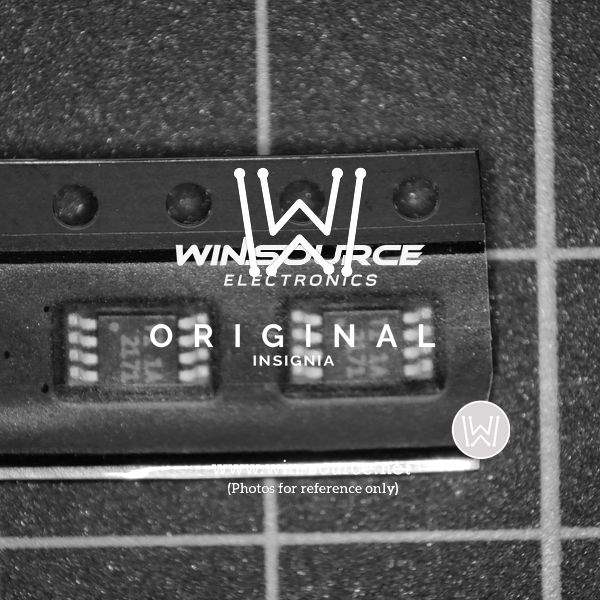

The OPA2171AQDGKRQ1 is offered in an 8-pin VSSOP (DGK) package, which is compact and suitable for space-constrained applications. The device meets the automotive industry standard AEC-Q100 qualification for reliability, and its operational lifespan is enhanced by the Texas Instruments Zero-Defect quality initiative.

Applications

This versatile operational amplifier can be utilized in a wide range of automotive applications, including:

• Electronic Power Steering (EPS)
• Automotive Sensor Signal Conditioning
• Battery Management Systems
• Infotainment and Audio Systems
• Automotive Camera Modules

With its combination of high performance, reliability, and design flexibility, the OPA2171AQDGKRQ1 is an excellent choice for automotive engineers seeking to enhance the capability and robustness of their electronic systems.
