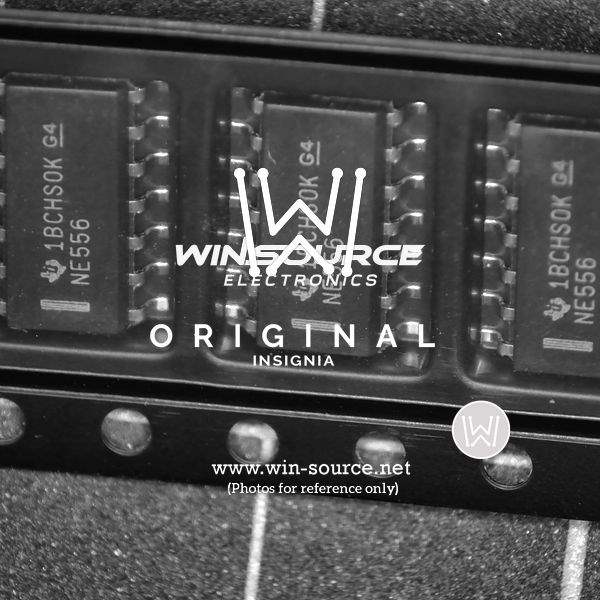

NE556DR Texas Instruments NE556DR Real Image NE556DR real image NE556DR Real Image
Same model may have multiple batches, images only for reference.
NE556DR Texas Instruments NE556DR Real Image NE556DR real image NE556DR Real Image
NE556DR Texas Instruments NE556DR Real Image NE556DR real image NE556DR Real Image
Same model may have multiple batches, images only for reference.

NE556DR

Part No NE556DR
Manufacturer Texas Instruments
Catalog Clock/Timing - Programmable Timers and Oscillators
Description IC OSC TIMER DUAL 100KHZ 14SOIC
Datasheet
NE556DR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type 555 Type, Timer/Oscillator (Dual)
Frequency 100kHz
Supply Voltage - Operating 4.5 V to 16 V
Operating Supply Current 20mA
Temperature Range - Operating 0°C to 70°C
Case / Package 14-SOIC
Mounting Surface Mount
Win Source Part Number 025204-NE556DR
Family Name NE556
Introduction Date August 01, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian NE556DR CAD Model

Description

The NE556DR from Texas Instruments is a high-performance dual timer integrated circuit (IC) that is designed to deliver precision timing and pulse generation for a wide range of applications.

  • IC Type: Dual Timer
  • Manufacturer: Texas Instruments
  • Applications: Frequency division, timing delay generation, pulse generation, and sequential timing
  • Voltage Range: 4.5V to 16V
  • Temperature Range: -40°C to 85°C
  • Output Current: Up to 200 mA
  • Package: 14-pin SOIC package
