Overview of MSP430F1610IRTDR

The MSP430F1610IRTDR is a high-performance microcontroller unit (MCU) from Texas Instruments, designed for low-power and high-efficiency applications. This MCU is part of the MSP430 family, which is renowned for its exceptional power management features and versatile peripherals that make it ideal for a wide range of electronic devices.

Key Features

• 16-Bit RISC Architecture: The MSP430F1610IRTDR is built on a 16-bit Reduced Instruction Set Computing (RISC) architecture that offers a balanced combination of processing power and energy efficiency, enabling it to execute instructions quickly while minimizing power consumption.
• Integrated Memory: It comes with 48KB of flash memory and 10KB of RAM, providing ample space for program storage and efficient data management without the need for external memory components.
• Digital and Analog Peripherals: This MCU includes a variety of peripherals such as multiple 16-bit timers, a 12-bit analog-to-digital converter (ADC), and a digital-to-analog converter (DAC), allowing for precise control and data acquisition in embedded systems.
• Low Power Modes: The MSP430F1610IRTDR features multiple low-power modes, which enable it to achieve ultra-low power consumption rates for battery-powered and energy-sensitive applications.
• Flexible Clock System: A flexible clock system is provided, which includes a built-in digitally controlled oscillator (DCO) that allows the device to wake up from low-power modes to active mode in less than 6 microseconds.

Connectivity and Programmability

The MSP430F1610IRTDR supports various communication protocols, including SPI, UART, and I2C, facilitating easy integration with other components in a system. It is programmable via JTAG, providing a convenient and efficient way to develop and debug firmware.

Applications

Due to its low power consumption and rich set of features, the MSP430F1610IRTDR is suitable for a variety of applications, such as sensor systems, industrial controls, handheld devices, and wireless networking. Its robust design ensures reliable operation even in harsh environments, making it a preferred choice for professional and industrial applications.

Packaging

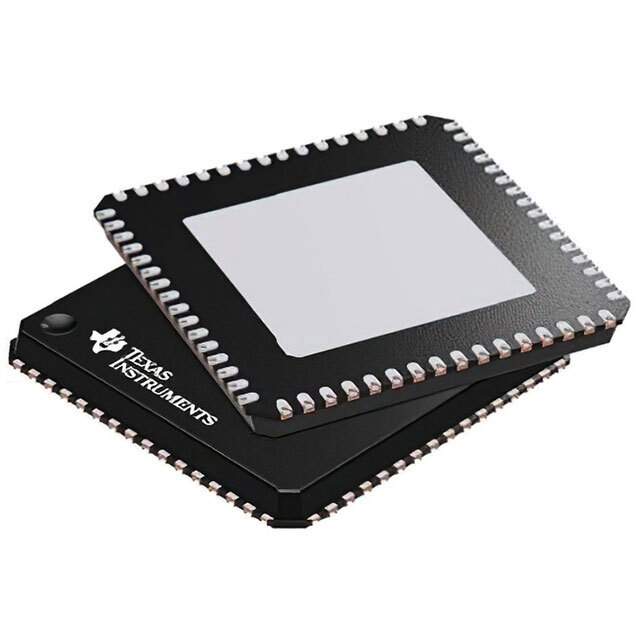

The MSP430F1610IRTDR is available in a 64-pin QFN package, which is compact and suitable for space-constrained applications. This packaging also provides good thermal performance and is compatible with automated assembly processes, reducing manufacturing costs and time to market.
