Product Overview: MAX3222EIPWR

The MAX3222EIPWR is a high-performance, low-power, RS-232 interface IC designed and manufactured by Texas Instruments. This integrated circuit is specifically engineered to meet the stringent requirements of battery-powered applications such as laptops, PDAs, and other portable devices where power efficiency is paramount.

Key Features

• Low Power Consumption: The device operates with a supply voltage ranging from 3.0V to 5.5V, making it suitable for a variety of power sources while maintaining minimal power draw to conserve battery life.
• Variable Data Rate: The MAX3222EIPWR supports data rates up to 250kbps, ensuring compatibility with high-speed serial communication requirements.
• Auto-Powerdown Feature: To further enhance power savings, the chip includes an automatic power-down function that reduces power consumption when not in use.
• ESD Protection: It offers built-in electrostatic discharge (ESD) protection up to ±15kV using the IEC 61000-4-2 Air-Gap Discharge method, safeguarding the device from potential damage caused by static electricity.
• Dual Charge-Pump Circuit: The integrated dual charge-pump circuitry allows for operation without the need for an external capacitor, reducing the overall component count and saving on board space.
• Multiple Transceivers: This device includes two drivers and two receivers, providing the flexibility to connect multiple peripherals with fewer chips.

Applications

The MAX3222EIPWR is ideal for a range of applications that require reliable RS-232 communication, including:

• Notebook, subnotebook, and palmtop computers
• Battery-powered equipment
• Handheld equipment
• Peripherals

Product Packaging

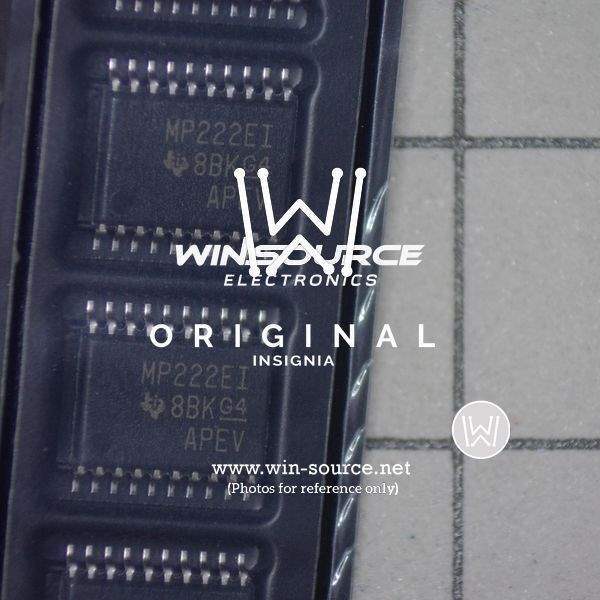

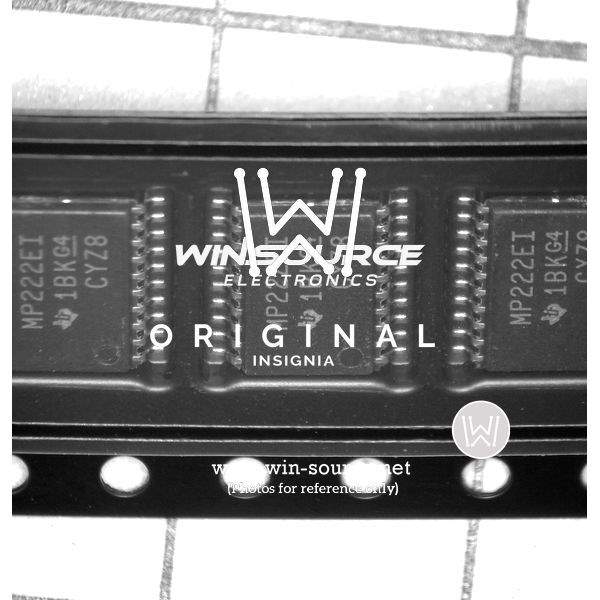

The device is available in a TSSOP (Thin Shrink Small Outline Package) with 20 pins, under the part number MAX3222EIPWR, providing a compact footprint suitable for space-constrained applications.

Conclusion

Overall, the MAX3222EIPWR from Texas Instruments is a versatile and power-efficient solution for RS-232 communication in portable devices. Its robust feature set ensures reliable operation, extended battery life, and protection against electrical disturbances, making it a top choice for designers and engineers in the field of mobile computing and communication technology.
