Same model may have multiple batches, images only for reference.

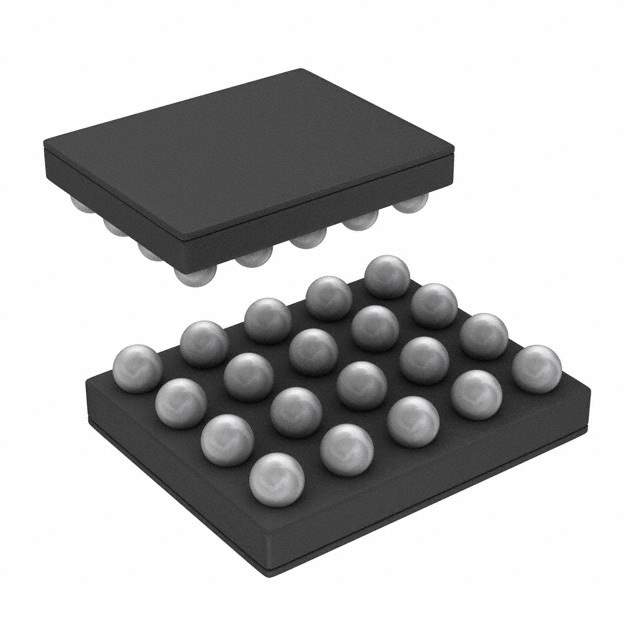

LP8556TMX-E05 Real Image
Same model may have multiple batches, images only for reference.

LP8556TMX-E05

Part No LP8556TMX-E05
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR 25MA 20DSBGA
Datasheet
LP8556TMX-E05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 20V
Channel Output Current 25mA
Frequency 312kHz, 625kHz, 1250kHz
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-DSBGA
Win Source Part Number 206542-LP8556TMX-E05
Ultra Librarian 3D Model Ultra Librarian LP8556TMX-E05 CAD Model

Description

The LP8556TMX-E06/NOPB is a high-efficiency, precision LED backlight driver from Texas Instruments. It is designed for applications such as LCD panels in televisions, monitors, and laptops.

  • LED Drive Capability: Operates at an input voltage range of 2.5V to 5.5V, supports up to 38 LEDs
  • Efficiency: Adaptive switch control for reduced power consumption
  • Dimming Control: PWM and analog input with direct PWM dimming support
  • Protection Features: Automatic shutdown in case of short circuit, thermal shutdown protection, and fault diagnostic mechanism
  • Package: Compact 20-pin WQFN package
