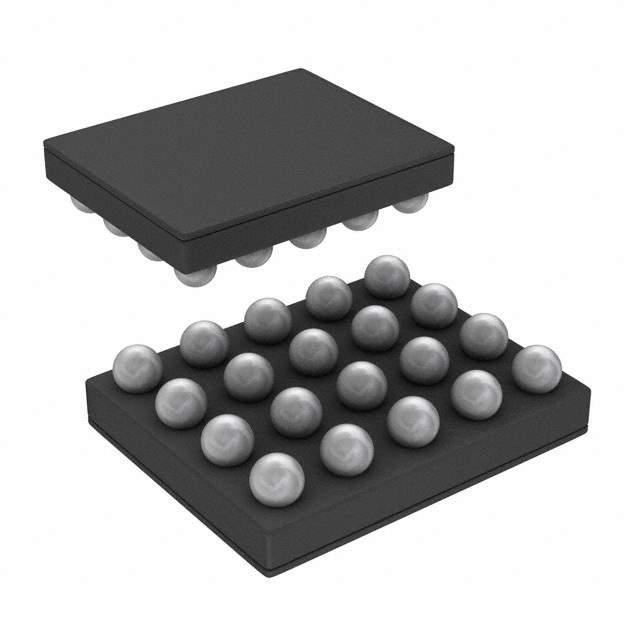

LP8556TMX-E02 Real Image
Same model may have multiple batches, images only for reference.

LP8556TMX-E02

Part No LP8556TMX-E02
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20DSBGA
Datasheet
LP8556TMX-E02 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 20V
Output Voltage 16 V to 30 V
Channel Output Current 25mA
Frequency 312kHz, 625kHz, 1250kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-DSBGA
Win Source Part Number 206540-LP8556TMX-E02
Ultra Librarian 3D Model Ultra Librarian LP8556TMX-E02 CAD Model

Description

The LP8556TMX-E02 is a high-efficiency LED backlight driver from Texas Instruments. It is designed for use in LCD screens in televisions, monitors, and laptops.

  • LED Drive Capability: Up to 12 white LEDs in 6 strings with up to 30mA string current
  • Dimming Control: PWM and analog dimming modes
  • Protection Features: Over-voltage, over-temperature, and LED open/short-circuit protection
  • Package: Compact 24-pin WQFN package
