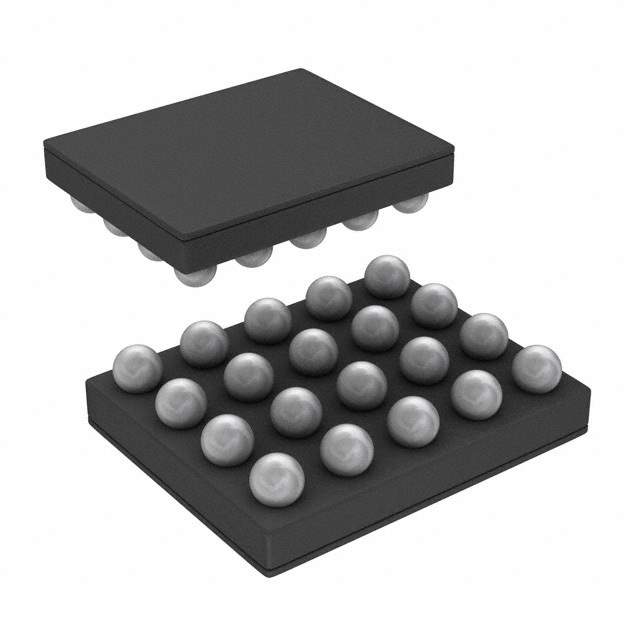

LP8556TMX-E02/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP8556TMX-E02/NOPB

Part No LP8556TMX-E02/NOPB
Manufacturer Texas Instruments
Catalog PMIC - LED Drivers
Description IC LED DRIVER RGLTR DIM 20DSBGA
Datasheet
LP8556TMX-E02/NOPB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Texas Instruments
Packaging Reel - TR
Status Active
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 6
Operating Input Voltage(Min) 2.7V
Maximum Supply Voltage 20V
Output Voltage 16 V to 30 V
Channel Output Current 25mA
Frequency 312kHz, 625kHz, 1250kHz
Dimming PWM
Applications Backlight
Temperature Range - Operating -30°C to 85°C (TA)
Mounting SMD (SMT)
Case / Package 20-DSBGA
Win Source Part Number 206541-LP8556TMX-E02/NOPB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian LP8556TMX-E02/NOPB CAD Model

Description

The LP8556TMX-E05 is a high-efficiency, precision LED backlight driver from Texas Instruments. It is designed to supply LED backlights in LCD screens, such as those found in televisions, monitors, and laptops.

  • LED Drive Capability: Operates at an input voltage range of 2.5V to 5.5V, supports up to 38 LEDs
  • Efficiency: Adaptive output voltage control for optimized efficiency
  • Dimming Control: 12-bit dimming resolution, PWM and analog dimming
  • Protection Features: Over-voltage, over-temperature, and LED open/short-circuit protection
  • Package: Compact 20-pin WQFN package, RoHS compliant
