Product Overview: LP5523TM/NOPB

The LP5523TM/NOPB is a versatile, programmable LED driver designed by Texas Instruments, tailored to meet the needs of complex lighting applications. This advanced component is capable of driving up to nine LEDs independently, making it an ideal choice for creating intricate lighting effects in a variety of devices such as smartphones, tablets, and other portable electronics.

Key Features

• Programmable: Equipped with an internal programmable EEPROM, the LP5523TM/NOPB allows designers to create unique lighting sequences and effects without the need for continuous processor control, thus saving valuable system resources.
• Energy Efficient: With an integrated charge pump, this LED driver ensures high efficiency and consistent LED brightness even when the battery voltage changes, thereby prolonging battery life.
• Independent LED Control: The ability to drive up to nine LEDs independently with constant current sinks enables precise control over brightness and color mixing for sophisticated lighting designs.
• Flexible Power Supply: The device operates over a wide input voltage range, accommodating various power supply requirements and making it suitable for a diverse range of applications.

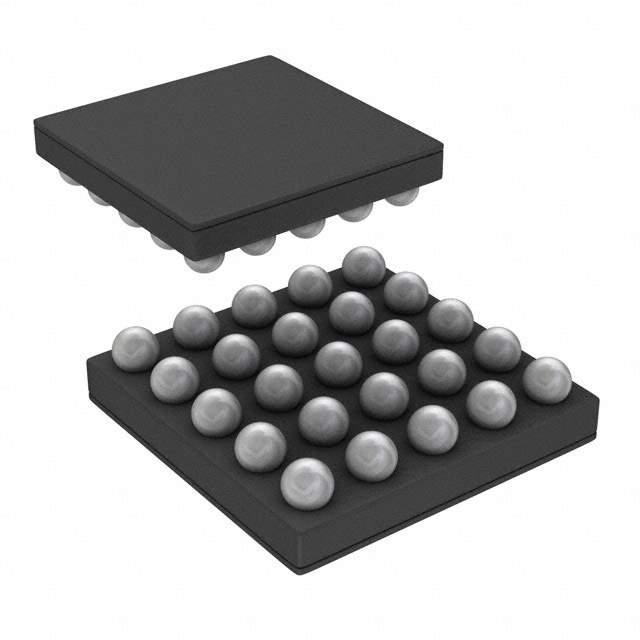

• Compact Package: Housed in a small 20-pin QFN package, the LP5523TM/NOPB saves valuable board space, which is essential in portable and space-constrained applications.

Applications

The LP5523TM/NOPB is designed to be a versatile solution for managing complex lighting scenarios. Its main applications include:

• Smartphone and tablet backlighting
• LED status indicators
• Fun lighting for toys and accessories
• Keypad backlights for portable devices
• Industrial and automotive lighting systems

Technical Specifications

The device boasts several technical specifications that make it a robust choice for advanced lighting solutions:

• Voltage range: 2.7V to 5.5V
• Up to 25.5 mA current drive per LED output
• I²C-compatible interface
• Internal program execution from EEPROM
• Temperature range: -40°C to 85°C

With its combination of programmability, efficiency, and compact design, the LP5523TM/NOPB stands out as a powerful tool for creating dynamic and power-conscious LED lighting solutions.
