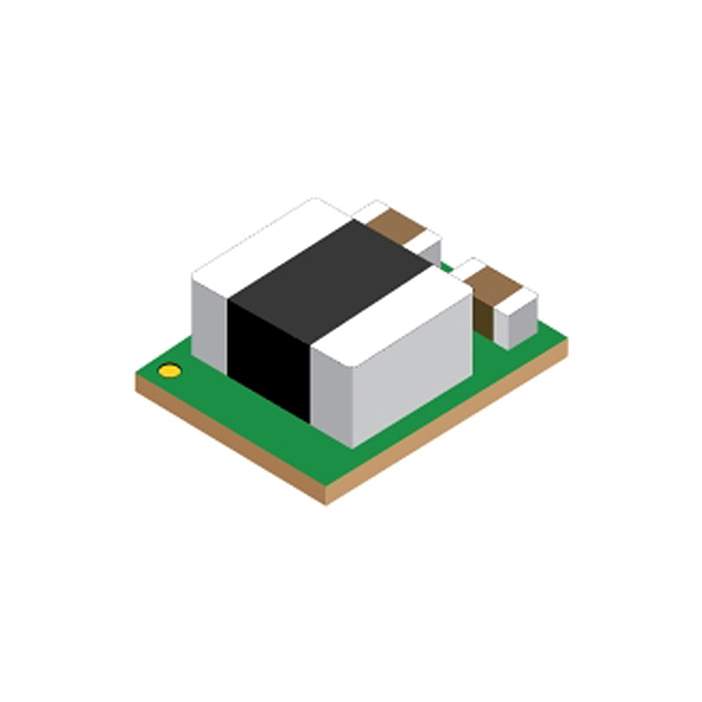

The LMZM23601V5SILT is a highly efficient, compact, easy-to-use power module from Texas Instruments, designed to meet a wide range of power requirements for various electronic applications. This power solution integrates a DC/DC converter, inductor, and power pass elements into a single package, which simplifies the design process and accelerates time to market.

Key Features

• Output Voltage: The module delivers a fixed output voltage of 5V, which is ideal for powering standard logic levels and many other general-purpose power needs.
• Input Voltage Range: It operates over a wide input voltage range from 4V to 36V, making it suitable for a variety of supply sources, including industrial and automotive applications.
• Output Current: Capable of delivering up to 1A of continuous output current, the LMZM23601V5SILT can handle moderate power loads with ease.
• High Efficiency: With its integrated power inductor and optimized design, the module achieves high power conversion efficiency, which helps reduce energy loss and heat generation.
• Compact Design: The power module comes in a small 3.8mm x 3mm x 1.6mm, 10-pin VSON package, which is perfect for space-constrained applications.
• Thermal Performance: Enhanced thermal performance ensures reliability and longevity even under full load conditions.
• Protection Features: It includes built-in features such as over-current protection, over-temperature protection, and under-voltage lockout, which provide a robust power solution.

Applications

The versatility of the LMZM23601V5SILT makes it suitable for a wide array of applications, including but not limited to:

• Industrial and automation systems
• Automotive infotainment and body electronics
• Telecommunication equipment
• Power supplies for FPGAs, DSPs, and microcontrollers

With its ease of use and comprehensive feature set, the LMZM23601V5SILT from Texas Instruments stands out as a reliable and efficient power module for designers looking to optimize their power management solutions.
