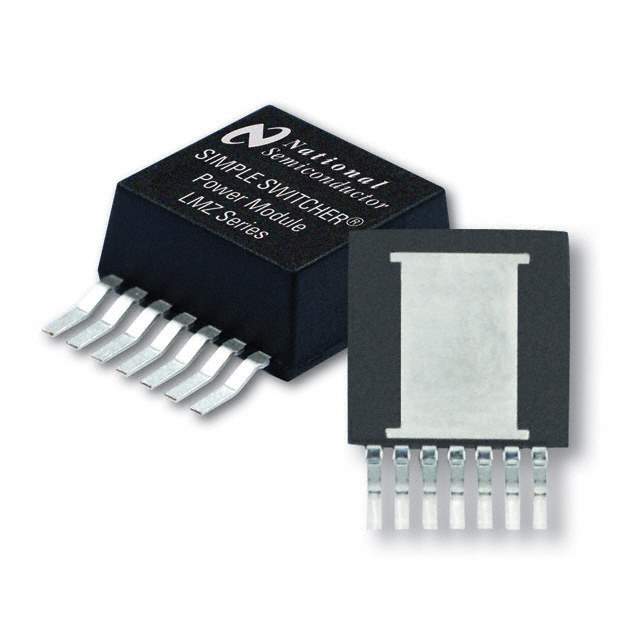

Product Overview: LMZ10503EXTTZ/NOPB

The LMZ10503EXTTZ/NOPB is a high-performance, easy-to-use power module from Texas Instruments, designed to meet the needs of space-constrained and power-sensitive applications. This power solution integrates a DC/DC converter, inductor, and passives into a compact, low-profile package, making it an ideal choice for a wide range of electronic devices.

Key Features

• Integrated Power Solution: Combines a DC/DC converter with an inductor and passives to simplify design and minimize footprint.
• High Efficiency: Provides up to 95% efficiency, which helps to reduce power loss and improve system performance.
• Adjustable Output Voltage: Offers an adjustable output voltage range from 0.8V to 3.6V, allowing for flexible use across different applications.
• Output Current: Capable of delivering up to 3A of output current, making it suitable for powering a variety of ICs and systems.
• Wide Input Voltage Range: Accepts an input voltage range of 2.95V to 5.5V, accommodating a variety of power sources.
• Thermal Performance: Enhanced thermal performance due to an integrated heat spreader in the package design.
• Quality and Reliability: Manufactured by Texas Instruments, a leader in semiconductor solutions, ensuring high standards of quality and reliability.

Applications

• Telecommunications
• Networking Equipment
• Portable and Battery-Powered Devices
• Industrial and Medical Equipment

Product Specifications

The LMZ10503EXTTZ/NOPB is a testament to Texas Instruments' commitment to providing innovative power management solutions that combine efficiency, reliability, and ease of use. Whether for new designs or upgrades to existing systems, this power module is a versatile and practical component for modern electronics.
