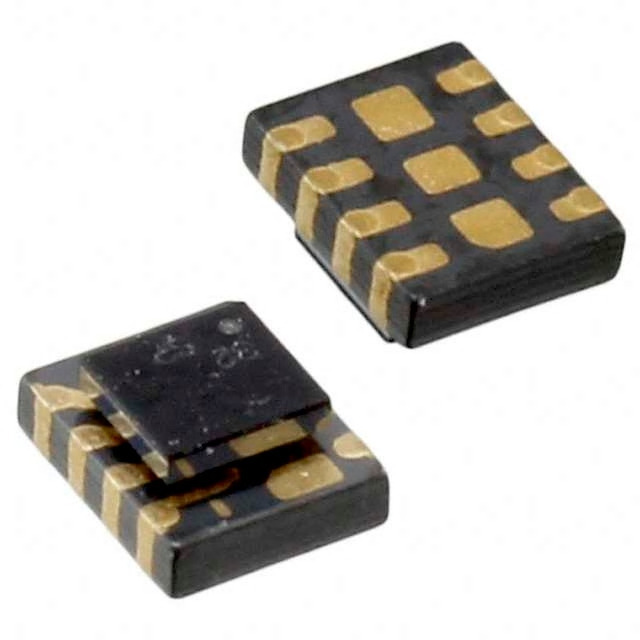

The LMZ10501SHE/NOPB from Texas Instruments is a nano module power solution that integrates a DC/DC converter with power MOSFETs, a shielded inductor, and passives into a low profile, QFN package. This highly efficient device is capable of delivering up to 1A of output current with excellent power conversion efficiency, making it ideal for space-constrained applications.

Key Features:

• Integrated Power Solution: Combines a DC/DC converter with power components in a compact package, simplifying the design process and reducing external component count.
• High Efficiency: With its advanced power conversion technology, the LMZ10501SHE/NOPB achieves high efficiency, which is crucial for maintaining thermal performance and extending battery life in portable applications.
• Adjustable Output Voltage: The output voltage can be adjusted from 0.8V to 3.6V via an external resistor, providing design flexibility for various applications.
• Easy to Use: The module requires minimal external components, which reduces design complexity and accelerates time to market.
• Small Footprint: The QFN package measures just 3mm x 2.5mm x 1.2mm, making it suitable for space-limited applications such as wearables, medical devices, and portable electronics.
• Thermal Performance: The integrated construction with a shielded inductor enhances thermal performance and reliability.
• Lead-Free and RoHS Compliant: The LMZ10501SHE/NOPB meets environmental standards, making it suitable for use in a wide range of markets and applications.

Applications:

• Portable and Battery-powered Devices
• Space-constrained Applications
• Networking, Telecom, and Industrial Modules
• Medical Equipment
• Wearables and IoT Devices

With its comprehensive integration, high efficiency, and small form factor, the LMZ10501SHE/NOPB is an excellent choice for designers looking to optimize power management in their compact electronic systems.
