The LMX2326SLBX/NOPB from Texas Instruments is a high-performance frequency synthesizer designed for use in wireless communication systems. This integrated circuit is part of the LMX2326 series and is specifically tailored for applications requiring a stable and precise frequency source, such as mobile phones, WLAN, base stations, and other RF communication devices.

This advanced synthesizer combines a high-frequency phase-locked loop (PLL) with a low-noise digital phase detector, providing exceptional phase noise performance. The LMX2326SLBX/NOPB operates over a wide frequency range and is capable of generating local oscillator (LO) frequencies for both the receiver and transmitter sections of a radio system.

Key features of the LMX2326SLBX/NOPB include:

• Supply voltage range from 2.7V to 5.5V, accommodating various system power rails.
• Low phase noise performance, ensuring high-quality signal synthesis for RF applications.
• Programmable dual-modulus prescaler (32/33 or 64/65), allowing fine frequency resolution.
• Serial interface for programming the frequency and function parameters, facilitating ease of integration into system designs.
• Power-down mode for reduced power consumption when the device is not in active use.

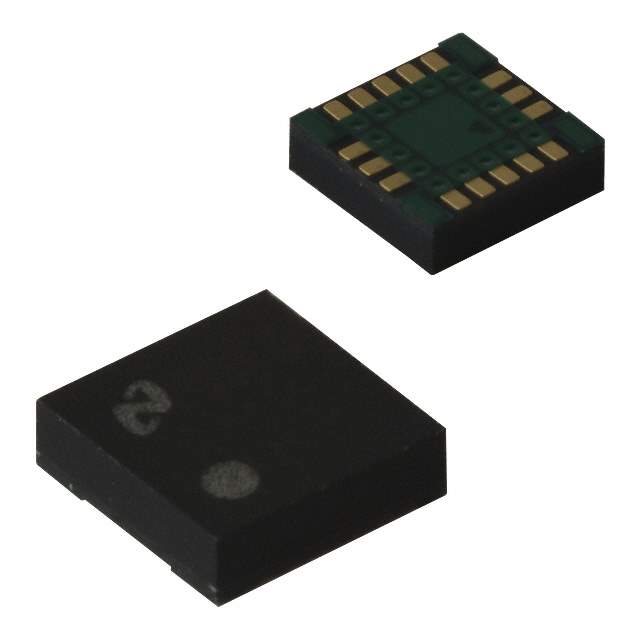

The LMX2326SLBX/NOPB is available in a compact surface-mount package, making it suitable for space-constrained applications. The device also features a robust design, with an operating temperature range of -40°C to 85°C, ensuring reliable performance across various environmental conditions.

As a lead-free and RoHS-compliant component, the LMX2326SLBX/NOPB aligns with environmental regulations, making it an ideal choice for eco-conscious manufacturers seeking to reduce the ecological impact of their products.

With its combination of performance, flexibility, and reliability, the LMX2326SLBX/NOPB from Texas Instruments represents a premier choice for designers looking to implement a high-quality frequency synthesizer in their RF communication systems.
