The LMV601MGX from Texas Instruments is a high-performance, low-voltage operational amplifier that offers a perfect balance between low power consumption and speed. This device is designed to operate with a single supply voltage as low as 2.7V, making it an ideal choice for battery-powered applications and portable devices.

Key Features

• Low Voltage Operation: The LMV601MGX is capable of operating at supply voltages ranging from 2.7V to 5.5V, allowing for versatile use in various electronic circuits and systems.
• Low Power Consumption: With a quiescent current of just 230 µA, this operational amplifier is optimized for power-sensitive applications.
• High Output Drive: Despite its low power design, the LMV601MGX can deliver a significant output current, making it suitable for driving heavier loads when necessary.
• Wide Bandwidth: The device features a bandwidth of 1.4 MHz, which allows for use in a variety of signal processing applications requiring moderate speed.
• Rail-to-Rail Output: The rail-to-rail output capability ensures maximum dynamic range, which is especially beneficial in low-voltage applications.
• Extended Temperature Range: The operational amplifier is designed to operate over an extended temperature range from -40°C to 125°C, ensuring reliable performance in harsh environments.

Applications

The LMV601MGX is suitable for a wide array of applications, including but not limited to:

• Portable and battery-powered devices
• Sensor amplification and signal conditioning
• Active filtering
• Medical instrumentation
• Audio applications

Package and Quality

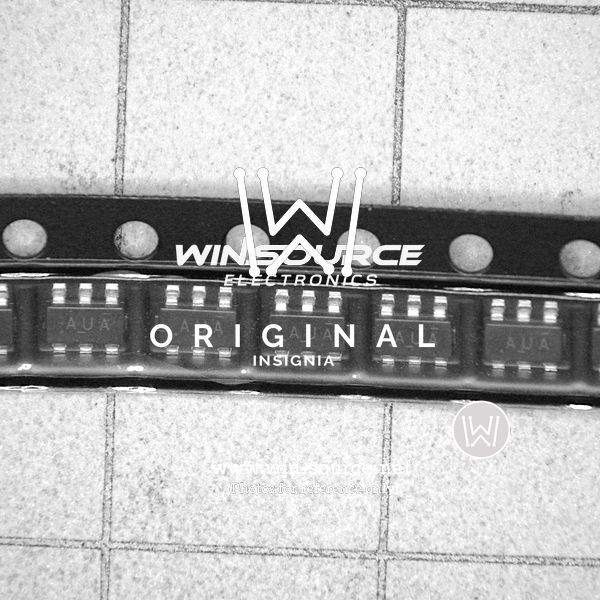

This operational amplifier is available in a compact 5-pin SC70 package, which is ideal for space-constrained applications. The LMV601MGX is also characterized for enhanced quality and reliability, ensuring it meets Texas Instruments' stringent standards.

With its combination of low power consumption, wide bandwidth, and rail-to-rail output, the LMV601MGX from Texas Instruments stands as a versatile component for designers looking to optimize their circuitry for both power efficiency and performance.
