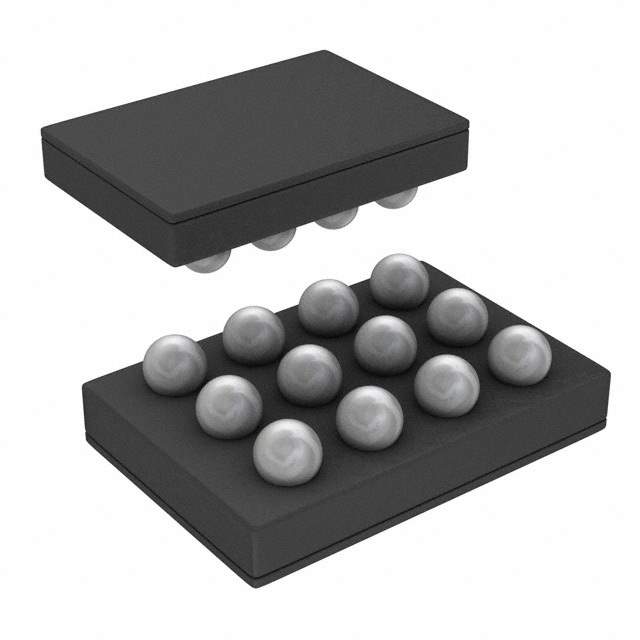

Product Overview: LMS4684ITL/NOPB by Texas Instruments

The LMS4684ITL/NOPB is a high-performance, low-dropout regulator (LDO) from Texas Instruments, designed to deliver a continuous output current of up to 150 mA. This advanced power management integrated circuit (IC) is ideal for portable and battery-powered applications where energy efficiency and space constraints are critical considerations.

Key Features

• Stable Output: The device ensures a stable output with a low dropout voltage, which is essential for maintaining performance across a range of input voltages and load conditions.
• High Accuracy: With an output voltage accuracy of ±1%, the LMS4684ITL/NOPB provides precise voltage regulation, which is crucial for sensitive electronic components.
• Wide Operating Voltage Range: The regulator operates over a wide input voltage range from 2.7V to 5.5V, making it versatile for various applications.
• Thermal Protection: Built-in thermal shutdown protection ensures the device operates within safe temperature limits, thus preventing thermal-related failures.
• Low Quiescent Current: The low quiescent current of the device helps to maximize battery life in portable applications.
• Adjustable Output Voltage: Output voltage is adjustable via external resistors, providing design flexibility.
• Small Package Size: The LMS4684ITL/NOPB comes in a tiny 5-pin SOT-23 package, making it suitable for space-constrained designs.

Applications

The LMS4684ITL/NOPB is an excellent choice for a broad array of applications, including but not limited to:

• Mobile Phones
• Personal Digital Assistants (PDAs)
• Portable Media Players
• Wireless LAN Devices
• GPS Receivers

With its combination of features, the LMS4684ITL/NOPB from Texas Instruments is a reliable and versatile solution for designers looking to improve the power efficiency and longevity of their products. Its compact size, high precision, and robust protection features make it an excellent choice for a wide range of portable and low-power applications.
