The LM4863MX/NOPB is a versatile audio amplifier integrated circuit (IC) designed and manufactured by Texas Instruments. This IC is part of the Boomer® series, which are known for their high-quality audio amplification capabilities, making them ideal for portable and compact audio applications.

Key Features

• Dual Amplifier Design: The LM4863MX/NOPB features a dual 2.2W audio amplifier that can be used in stereo mode or bridged to deliver a single 4.4W output, providing flexibility in audio system design.
• Low Voltage Operation: It operates on a supply voltage range from 2V to 5.5V, making it suitable for battery-powered devices such as portable media players, laptops, and mobile phones.
• No Output Coupling Capacitors: The amplifier is designed to not require bootstrap capacitors or snubber networks, simplifying circuit design and reducing overall component count.
• Thermal Shutdown Protection: The LM4863MX/NOPB is equipped with a thermal shutdown mechanism that protects the IC from damage due to overheating.

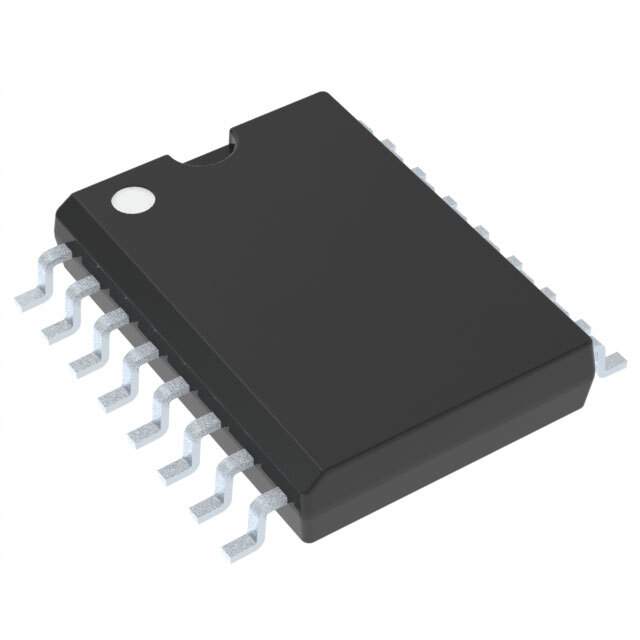

• Surface-Mount Package: Packaged in a small SOP (Small Outline Package), it is ideal for space-constrained applications.

Applications

The LM4863MX/NOPB is suitable for a wide range of audio amplification tasks. Its low power consumption and small footprint make it an excellent choice for:

• Portable Speakers
• Desktop Computer and Laptop Audio Systems
• Portable Media Players
• Mobile Phone Handsets

Quality and Reliability

As a product of Texas Instruments, the LM4863MX/NOPB is manufactured to high standards, ensuring reliable performance and longevity. The "NOPB" suffix indicates that the product is lead-free and RoHS compliant, reflecting TI's commitment to environmental sustainability.

Conclusion

The LM4863MX/NOPB from Texas Instruments represents a blend of performance, efficiency, and convenience. Its dual amplifier design, low voltage operation, and thermal protection make it a robust solution for designers looking to create high-quality audio experiences in compact and portable devices.
