The LM2756TMEV from Texas Instruments is a highly efficient, switch-mode LED driver designed to provide a high-brightness solution for various applications. This device is particularly well-suited for driving white LEDs and can be used in products ranging from smartphones to portable lighting solutions.

Key Features

• High Efficiency: The LM2756TMEV offers an impressive efficiency rate, which is essential for battery-powered devices, ensuring longer operation time between charges.
• Adjustable Output: It provides a flexible output voltage range, which can be tailored to meet the needs of specific applications, ensuring optimal performance of the LED(s).
• Compact Design: Its small footprint makes it an ideal choice for space-constrained applications, without compromising on power or efficiency.
• Thermal Protection: The device includes thermal shutdown protection, safeguarding the LED driver against potential damage from overheating.

Applications

The versatility of the LM2756TMEV allows it to be used in a wide array of applications, including but not limited to:

• Backlighting for LCD displays
• Keypad illumination for mobile devices
• General LED lighting
• Portable flashlights and torches

Technical Specifications

With a variable output voltage that can be configured to drive multiple LEDs in series, the LM2756TMEV ensures that the lighting requirements for various devices are met with precision. The device's high switching frequency allows for the use of small external components, reducing the overall solution size. It also features an integrated Schottky diode, further minimizing the external component count.

Design and Development Support

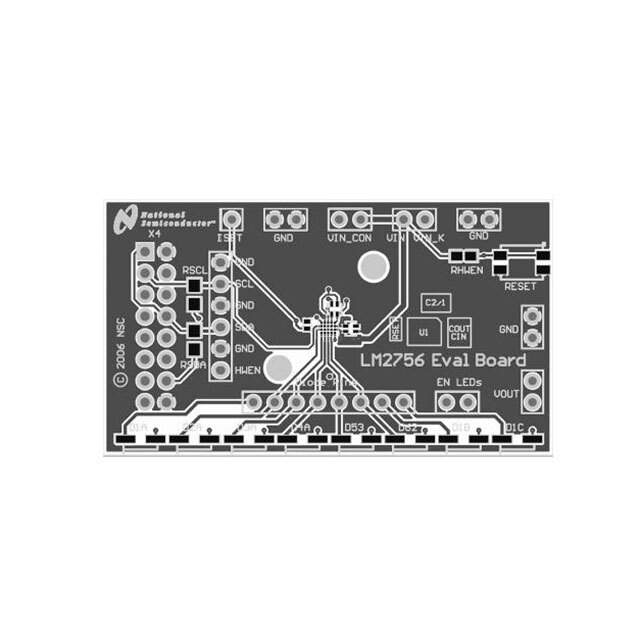

Texas Instruments provides comprehensive design support for the LM2756TMEV, including evaluation modules, detailed datasheets, and application notes. Engineers can leverage these resources to accelerate the design process and ensure a seamless integration into their product designs.

Ordering Information

The LM2756TMEV is available for order in various packaging options to suit different production requirements. For detailed ordering and product information, customers can visit the Texas Instruments website or contact their local sales office.
