Product Overview: DS25CP114TSQX/NOPB

The DS25CP114TSQX/NOPB is a high-performance, 4-channel, 2.5 Gbps LVDS buffer/repeater designed by Texas Instruments. This advanced semiconductor device is engineered to meet the needs of demanding applications that require high-speed data transmission and signal conditioning. The DS25CP114TSQX/NOPB is a vital component in various industries, including telecommunications, computing, and professional video systems.

Key Features

• High-Speed Performance: Capable of operating at speeds up to 2.5 Gbps per channel, this device ensures rapid data transfer and minimal signal degradation over extended distances or through noisy environments.
• Low Power Consumption: Designed for efficiency, the DS25CP114TSQX/NOPB consumes minimal power, making it an ideal choice for energy-sensitive applications.
• Signal Conditioning: The device includes equalization and de-emphasis features that help to compensate for inter-symbol interference (ISI) and improve signal integrity.
• Flexible Operation: It supports a wide range of data transmission standards, including LVDS, Bus LVDS, M-LVDS, and LVPECL, offering versatility for various design requirements.
• Robust Protection: The DS25CP114TSQX/NOPB incorporates fail-safe circuitry that ensures a high impedance output state in the absence of input signals, protecting the device and the system.

Applications

The DS25CP114TSQX/NOPB is suitable for a broad spectrum of applications. It is commonly used in high-speed backplanes and cable extenders, where maintaining signal integrity is crucial. Additionally, it can be found in clock distribution networks, high-resolution video displays, and other systems requiring reliable high-speed data communication.

Quality and Reliability

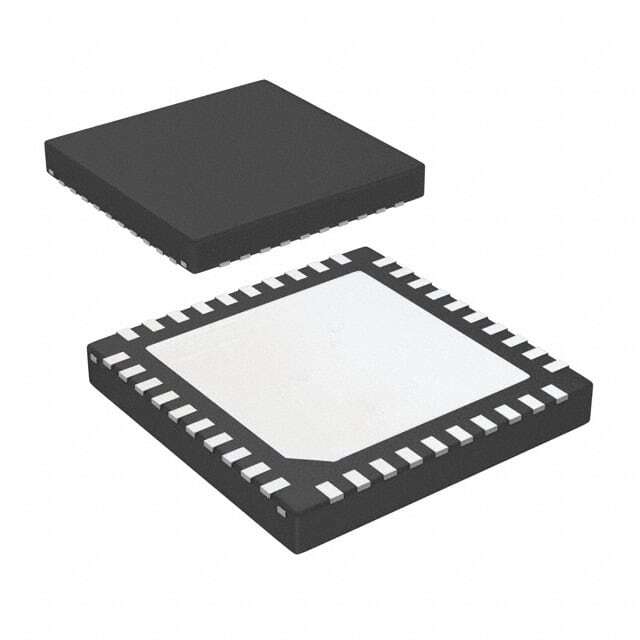

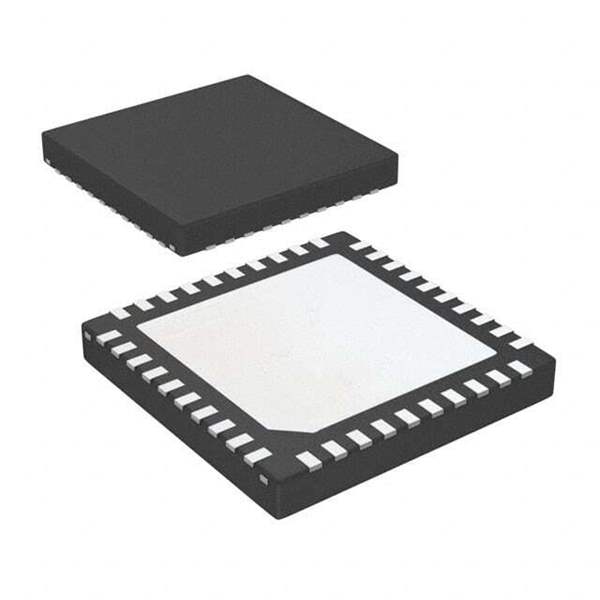

Texas Instruments is known for its commitment to quality, and the DS25CP114TSQX/NOPB is no exception. This device is available in a compact 40-pin WQFN package and is characterized for operation from -40°C to 85°C, ensuring reliable performance across a wide temperature range. The NOPB designation indicates that the product is lead-free and RoHS compliant, aligning with environmental standards and regulations.
