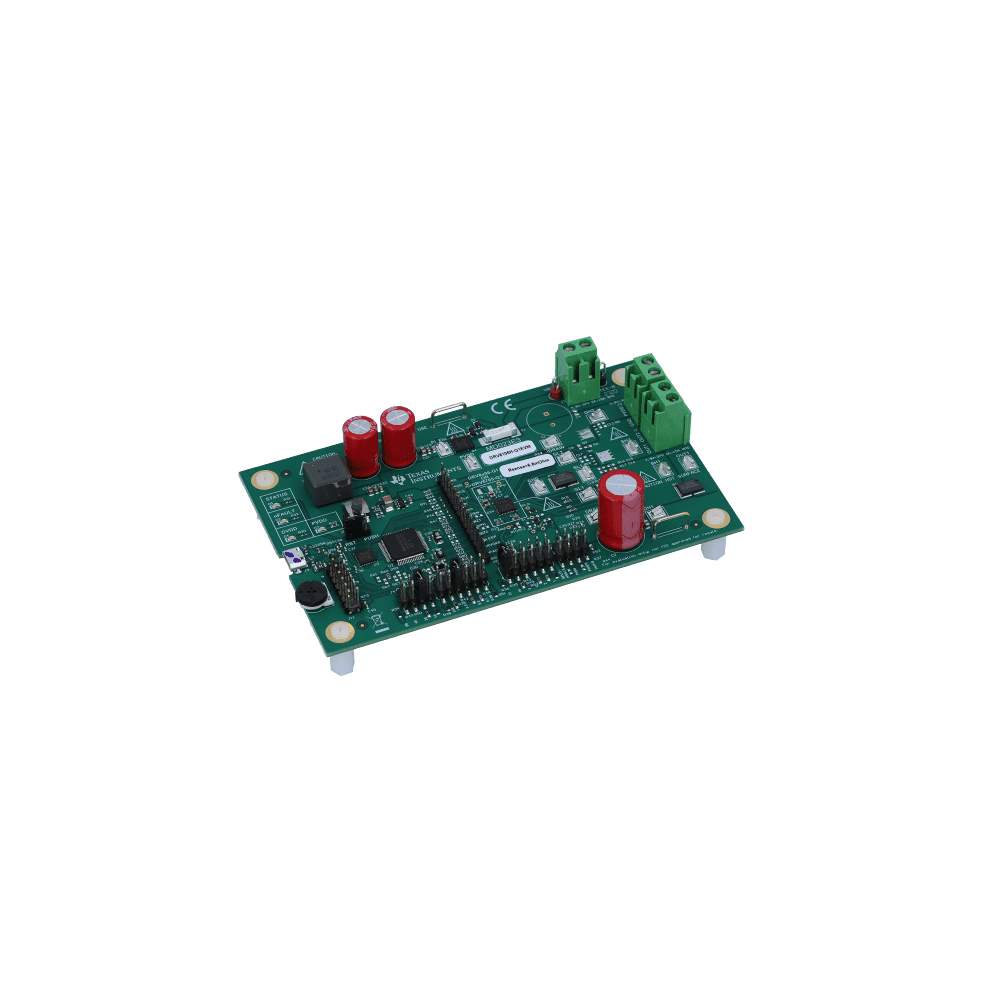

DRV8106H-Q1EVM Evaluation Module from Texas Instruments

The DRV8106H-Q1EVM is an evaluation module designed to showcase the capabilities and features of the DRV8106H-Q1, an automotive-grade six-channel motor driver integrated circuit (IC) from Texas Instruments (TI). This evaluation module is an essential tool for engineers and designers who are interested in developing automotive applications such as mirror folding and adjustment, seat positioning, and headlight leveling that require precise control of small brushless DC (BLDC) motors, stepper motors, or other types of actuators.

The DRV8106H-Q1 IC is specifically tailored for the rigorous demands of the automotive industry, providing robust performance and reliability. It is AEC-Q100 qualified, ensuring that it meets the high standards required for automotive applications. The IC features six half-bridge drivers capable of driving up to three BLDC motors. It also supports both 180-degree and 120-degree sensorless motor commutation, making it versatile for various motor types.

Key features of the DRV8106H-Q1EVM include:

• Integrated power management with a 5V regulator and charge pump for reduced external components.
• Configurable gate drive settings for optimizing motor performance and minimizing electromagnetic interference (EMI).
• Protection features such as overcurrent, short-circuit, under-voltage lockout, and thermal shutdown to enhance system safety and reliability.
• SPI and hardware interface options for flexible control and configuration.
• On-board microcontroller for standalone operation or interfacing with an external controller.

The evaluation module comes with a user-friendly GUI (graphical user interface) that allows for easy manipulation of the DRV8106H-Q1's settings and parameters. This GUI facilitates rapid prototyping and testing, enabling developers to quickly iterate on their designs and optimize motor performance.

With its comprehensive feature set and robust design, the DRV8106H-Q1EVM from Texas Instruments is an invaluable tool for automotive engineers looking to implement sophisticated motor control solutions in their next-generation vehicles. By using this evaluation module, developers can significantly reduce their time-to-market and ensure that their motor control applications meet the highest standards of performance and quality.
