Introducing the DRV5012AEDMRT Hall Effect Sensor from Texas Instruments

The DRV5012AEDMRT is a cutting-edge Hall effect sensor designed by Texas Instruments (TI) to provide a reliable solution for contactless magnetic field detection. This compact and efficient sensor is an ideal component for a wide range of applications, including but not limited to brushless DC (BLDC) motor control, position sensing, and revolution counting.

Key Features

• High Sensitivity: The DRV5012AEDMRT is engineered to detect the presence of a magnetic field with high precision. Its sensitivity allows for accurate sensing, even in applications with weak magnetic signals.
• Digital Latch Output: The sensor provides a digital latch output that changes state in the presence of a sufficient magnetic field and retains the state when the field is removed, making it suitable for position detection and direction control.
• Low Power Consumption: Designed with energy efficiency in mind, the DRV5012AEDMRT operates with a low current draw, making it an excellent choice for battery-powered and portable applications.
• Robust Design: TI's Hall effect sensor is built to withstand harsh environments and is capable of operating over a wide temperature range, ensuring reliable performance across various conditions.

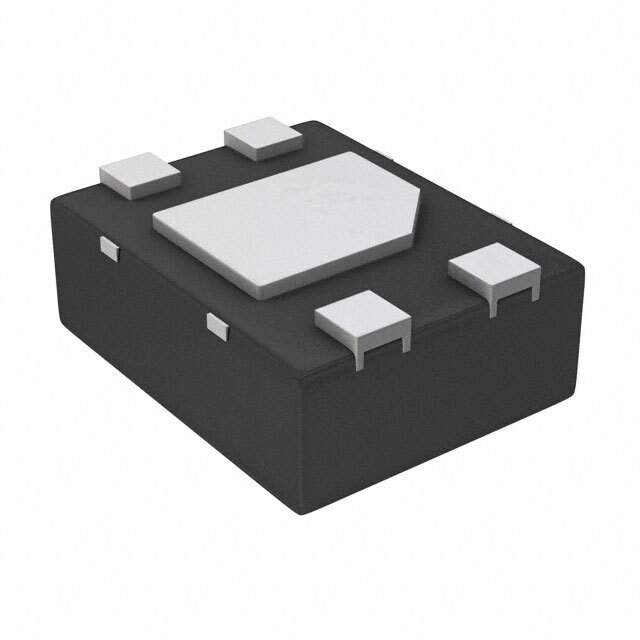

• Miniature Package: The ultra-small X2SON package measures just 1.65 mm × 1.65 mm, making it easy to integrate into space-constrained designs without compromising functionality.

Applications

The versatility of the DRV5012AEDMRT allows it to be used in numerous applications. It is particularly well-suited for:

• Industrial automation and robotics
• Consumer electronics
• Automotive sensors
• BLDC motor commutation
• Flow meters

Technical Specifications

The sensor operates within a supply voltage range of 2.5V to 38V, which accommodates a broad spectrum of power sources. Its operating temperature range spans from -40°C to 125°C, providing assurance for consistent performance in extreme conditions.

For designers and engineers looking for a reliable Hall effect sensor, the DRV5012AEDMRT from Texas Instruments offers an exceptional balance of sensitivity, power efficiency, and robustness, all packed into a tiny footprint. Whether it's for precise position sensing or efficient motor control, this sensor stands out as a top choice for your sensing needs.
