Product Overview: CLVC1G125QDBVRQ1 from Texas Instruments

The CLVC1G125QDBVRQ1 is a high-performance, single-bit bus buffer gate with 3-state output from Texas Instruments, designed to offer both high-speed operation and low-power consumption. This device operates as a non-inverting gate with a Schmitt-trigger action at all inputs, which makes it suitable for squaring up slow input rise and fall times.

Key Features

• Logic Type: The device is a single-bit non-inverting bus buffer gate with a 3-state output, which allows for controlled output representation from high, low, or high impedance.
• Voltage Range: It operates over a wide voltage range from 1.65V to 5.5V, which makes it compatible with a variety of logic levels and suitable for battery-operated and low-voltage applications.
• High-Speed Operation: The CLVC1G125QDBVRQ1 is capable of high-speed operation, with a typical tpd of 2.9 ns at 3.3V, ensuring swift data processing and transmission.
• Low Power Consumption: It is designed for low power consumption with a low ICC of 10 µA maximum, making it an energy-efficient choice for modern electronic systems.
• Output Drive Capability: The device can drive up to ±24 mA at the output, providing good signal integrity and driving capability.
• ESD Protection: Enhanced electrostatic discharge (ESD) protection is provided, ensuring robustness and longevity of the device in challenging environments.

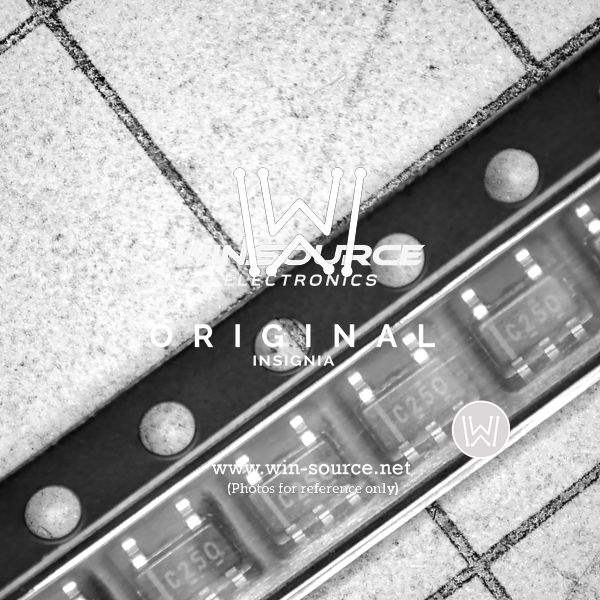

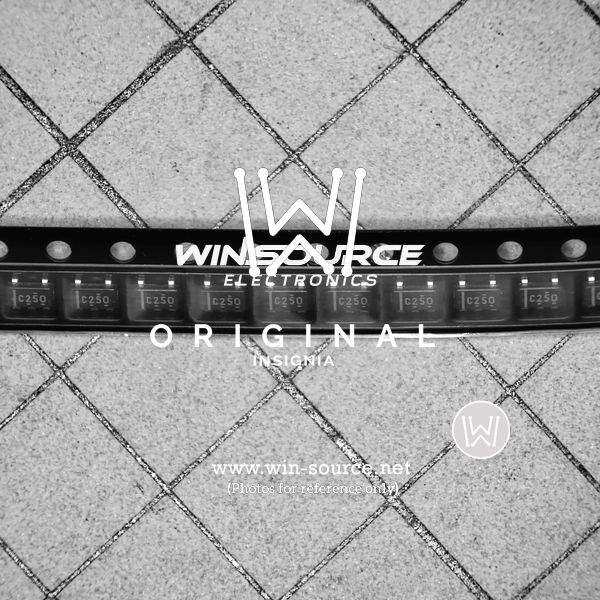

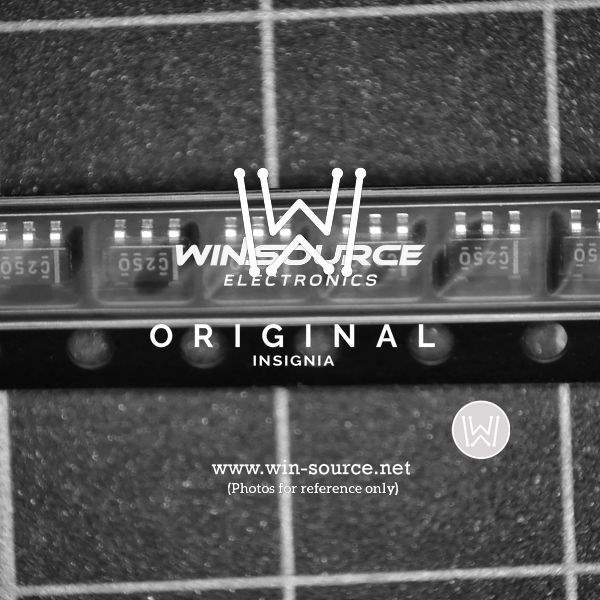

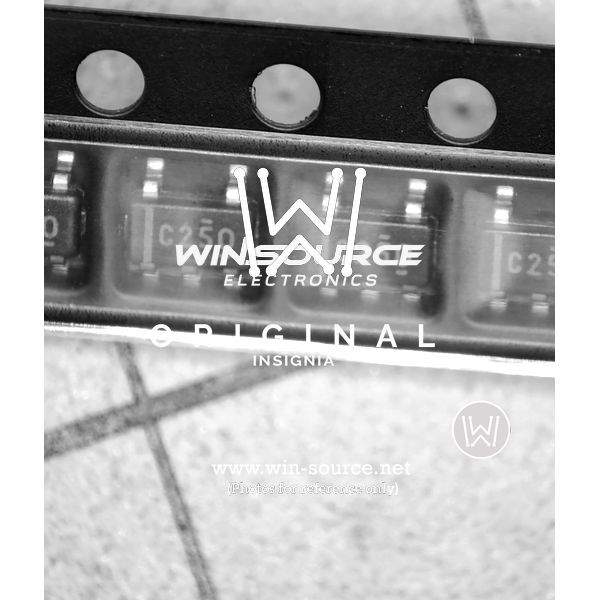

• Package: The CLVC1G125QDBVRQ1 comes in a small, space-saving SOT-23-5 package, which is ideal for compact PCB layouts.
• Temperature Range: It operates over the extended industrial temperature range of -40°C to 85°C, allowing for use in a wide range of industrial applications.

Applications

The versatility of the CLVC1G125QDBVRQ1 allows it to be used in various applications that require a single-bit buffer or driver with a 3-state output. These include, but are not limited to:

• Logic level translation
• Bus isolation
• Signal buffering
• Memory address driving
• Switching between data sources

With its combination of high-speed operation, low power consumption, and robust protection features, the CLVC1G125QDBVRQ1 is an ideal solution for designers looking to optimize their digital systems for performance and efficiency.
