The BQ7693002DBTR from Texas Instruments is a cutting-edge battery management integrated circuit (IC) designed for the efficient monitoring and protection of lithium-ion batteries used in a wide range of applications. This advanced solution is particularly well-suited for portable electronics, electric vehicles, and energy storage systems, where precise battery management is crucial for both performance and safety.

Key Features

• Voltage Monitoring: The BQ7693002DBTR offers high-precision voltage monitoring capabilities for up to 10 series cell battery packs, ensuring that each cell operates within its safe voltage range.
• Cell Balancing: With an integrated cell balancing function, this IC helps to maintain uniform charge across all cells, thereby extending battery life and improving overall efficiency.
• Temperature Protection: It includes multiple temperature sensor inputs to monitor the battery temperature, providing over-temperature and under-temperature protection.
• Current Sensing: The device features a built-in current sense amplifier that enables accurate measurement of charge and discharge currents, which is critical for calculating remaining battery capacity and preventing overcurrent conditions.

Safety Features

• Short Circuit Protection: The BQ7693002DBTR is equipped with robust short circuit protection to quickly detect and respond to potentially dangerous current spikes.
• Overvoltage and Undervoltage Protection: It provides comprehensive protection against overvoltage and undervoltage conditions, ensuring the longevity and reliability of the battery pack.
• Chemical Fuse: The IC supports the use of a chemical fuse, a critical safety feature that permanently disconnects the battery in the event of a catastrophic failure.

Communication and Interface

The BQ7693002DBTR communicates via an I2C interface, allowing for easy integration with microcontrollers and other digital systems. This facilitates the retrieval of battery parameters and the configuration of the IC for optimal performance tailored to specific application requirements.

Package and Availability

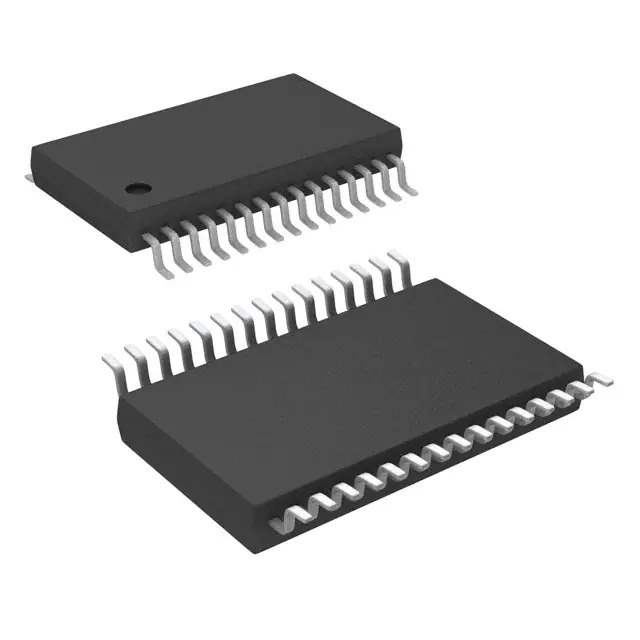

Housed in a compact 30-pin TSSOP (DBT) package, the BQ7693002DBTR is designed for space-constrained environments while providing robust protection and monitoring features. Texas Instruments ensures availability and support for this product, making it a reliable choice for designers and manufacturers of advanced battery systems.
