The Texas Instruments ADS5272IPFP is a high-performance, 8-channel, 10-bit analog-to-digital converter (ADC) designed for medical imaging, test and measurement, and communication applications where high data acquisition speed and precision are crucial. This ADC features a maximum sample rate of 65 MSPS (mega samples per second), providing the speed needed for high-bandwidth signals.

Key Features

• High-Speed ADC: With a sample rate of up to 65 MSPS, the ADS5272IPFP is capable of converting analog signals to digital data rapidly, making it suitable for real-time processing applications.
• Multi-Channel Flexibility: The device includes 8 independent ADC channels, which can be used to process multiple signals simultaneously, allowing for efficient data acquisition in multi-sensor systems.
• Low Power Consumption: Despite its high-speed capabilities, the ADS5272IPFP is designed for low power operation, which is essential for portable and battery-operated devices.
• High Integration: The integration of features such as internal voltage references and an oscillator simplifies system design and reduces the need for external components.
• Digital Error Correction: Built-in digital error correction ensures high accuracy by minimizing the impact of system noise and component mismatches.
• Programmable Gain: The device offers programmable gain options for each channel, enabling customization for various signal levels and improving dynamic range.

Applications

The ADS5272IPFP is ideal for a range of applications, including:

• Medical Imaging Systems (e.g., MRI, CT scanners)
• Test and Measurement Equipment
• Data Acquisition Systems
• Communication Infrastructure

Technical Specifications

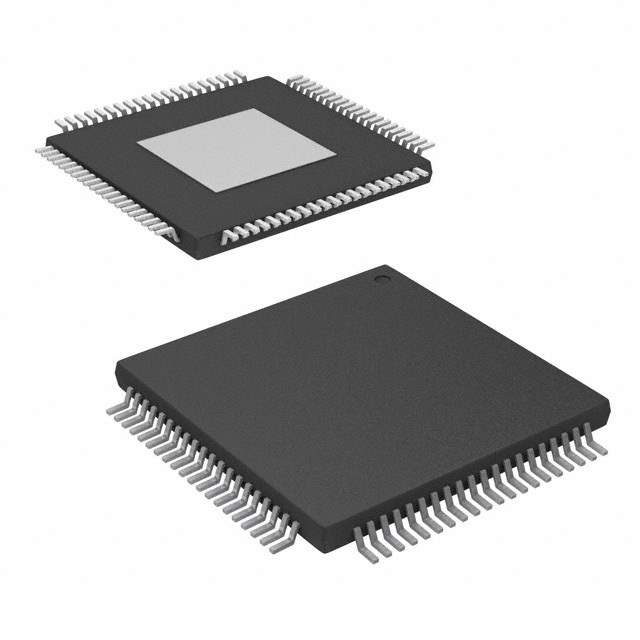

The ADS5272IPFP operates within a temperature range of -40°C to +85°C and comes in a 80-TQFP (Thin Quad Flat Pack) package. It requires a single 3.3V supply for the analog circuitry and a 1.8V to 3.3V supply for the digital interface, compatible with a variety of logic levels.

For detailed technical specifications, refer to the Texas Instruments ADS5272IPFP datasheet and user guides, which provide comprehensive information on the device's operation, performance, and application guidelines.
