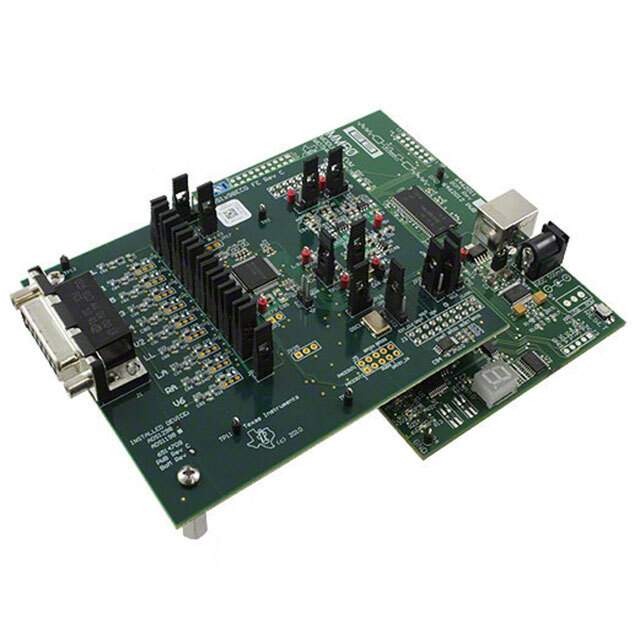

The Texas Instruments ADS1298ECGFE-PDK is a comprehensive evaluation platform designed for the ADS1298, a high-performance, multi-channel, simultaneous-sampling analog-to-digital converter (ADC) specifically tailored for electrocardiogram (ECG) and electroencephalogram (EEG) applications in medical instrumentation.

Key Features

• Multi-Channel Flexibility: The ADS1298 integrates eight channels with 24-bit resolution, providing the flexibility needed for advanced cardiac monitoring systems.
• High Precision: With its high level of integration and exceptional performance, the ADS1298 ensures precise measurements critical for accurate diagnosis.
• Simultaneous Sampling: The simultaneous sampling capability of all channels reduces latency and improves the temporal accuracy of the signal acquisition.
• Low Power Consumption: Designed for battery-powered devices, the ADS1298 is optimized for low power consumption, extending the operational life of portable medical equipment.

Product Evaluation Kit Contents

The ADS1298ECGFE-PDK includes everything needed for immediate evaluation:

• Evaluation Module (EVM): The heart of the kit, featuring the ADS1298 ADC, allows for thorough testing and prototyping.
• Graphical User Interface (GUI): A user-friendly software interface for easy control and data visualization on a connected computer.
• Reference Designs: These help accelerate the development process by providing proven, application-specific examples.
• Comprehensive Documentation: Detailed instructions, schematics, and application notes are included to guide users through the evaluation process.

Applications

The ADS1298ECGFE-PDK is ideal for a wide range of applications, including:

• Portable and bedside ECG monitors
• Ambulatory heart rate monitors
• EEG monitors and other neurology equipment
• Research and development in biomedical signal acquisition

With its high level of performance and ease of use, the ADS1298ECGFE-PDK from Texas Instruments is an indispensable tool for engineers and researchers developing next-generation medical monitoring devices.
