Texas Instruments ADS1263IPWR Precision ADC

The ADS1263IPWR from Texas Instruments is a highly integrated, precision, 32-bit, delta-sigma analog-to-digital converter (ADC) designed to provide unparalleled performance in a wide range of applications. This state-of-the-art ADC features dual simultaneous sampling channels, making it ideal for applications that require high-resolution signal acquisition, such as industrial control systems, temperature sensing with RTDs or thermocouples, bridge sensors for pressure, strain, and force measurements, and weigh scales.

With its exceptional precision and low noise, the ADS1263IPWR boasts an impressive data rate of up to 38k samples per second (SPS), allowing for accurate and rapid data collection. The device also features a built-in programmable gain amplifier (PGA), which provides gains ranging from 1 to 32, enabling it to adapt to signals of various amplitudes.

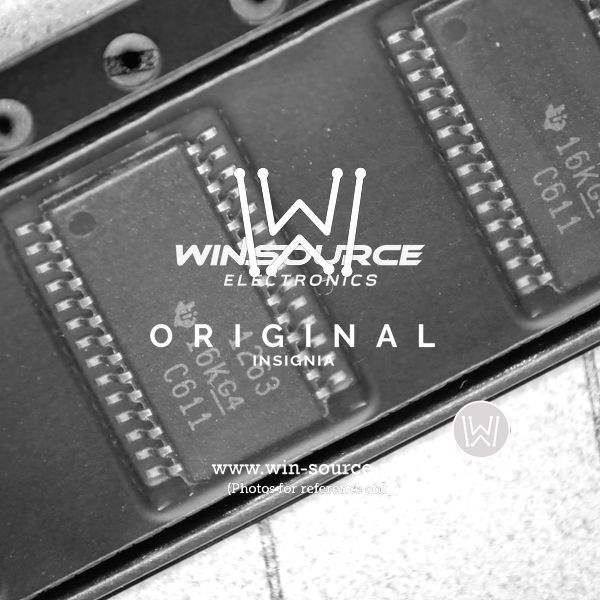

The ADS1263IPWR comes in a compact TSSOP-28 package, making it suitable for space-constrained applications. Its wide supply voltage range of 4.75V to 5.25V gives designers flexibility in power supply design. The device also includes a low-drift voltage reference, an oscillator, and a temperature sensor, further reducing the need for external components and simplifying system design.

The robust on-chip fault detection capabilities ensure reliable operation by monitoring the lead-off status, reference signals, and power supplies. Additionally, the ADC provides a variety of built-in calibration features, such as self-calibration, system calibration, and background calibration, which help maintain accuracy over time and temperature.

Texas Instruments' ADS1263IPWR is designed with industrial applications in mind, offering both SPI and GPIO interfaces for communication and control. It is also characterized for operation over the extended industrial temperature range of -40°C to +105°C, ensuring reliable performance in harsh environments.

Whether it's being used for precision measurement in laboratory equipment or for monitoring in automation and process control, the ADS1263IPWR provides the accuracy, reliability, and flexibility needed to meet the demands of complex and critical systems.
