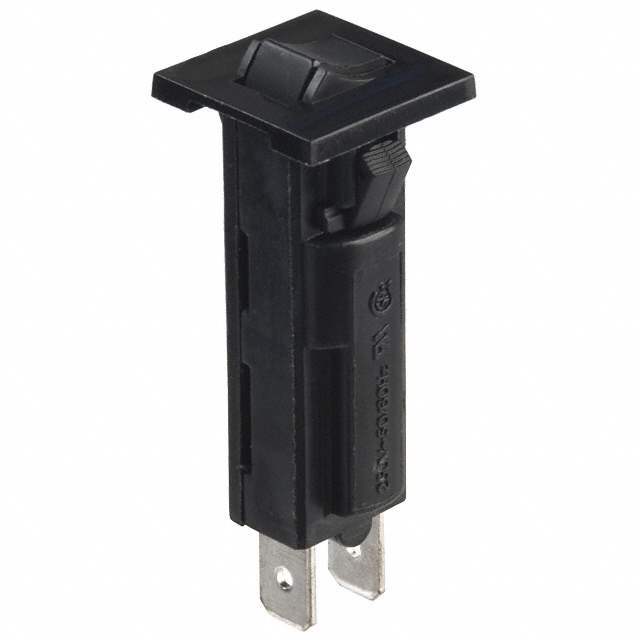

W28-XQ1A-20 TE Connectivity Potter & Brumfield Relays
Same model may have multiple batches, images only for reference.

W28-XQ1A-20

Part No W28-XQ1A-20
Manufacturer TE Connectivity
Catalog Circuit Breakers
Description CIR BRKR THRM 20A 250VAC 32VDC
Datasheet
W28-XQ1A-20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1305810-W28-XQ1A-20
Manufacturer TE Connectivity Potter & Brumfield Relays
Category Circuit Protection -Circuit Breakers
Packaging  Bulk
Part Status Active
Mounting Type Panel Mount
Breaker Type Thermal
Current Rating (Amps) 20A
Voltage Rating - AC 250 V
Voltage Rating - DC 32 V
Actuator Type Push to Reset
Number of Poles 1
Ultra Librarian 3D Model Ultra Librarian W28-XQ1A-20 CAD Model

Description

W28 series is UL 1077 Recognized as Supplementary Protectors, File E69543, and CSA Accepted as Supplementary Protectors (Appliance Component Protectors), File LR15734. W28 breakers are VDE approved for use in office equipment (AC loads only) and provides 8mm isolation. 16 amp and 20 amp models do not have VDE approvals at present. CCC mark compliant, certificate 2004010307135992.
