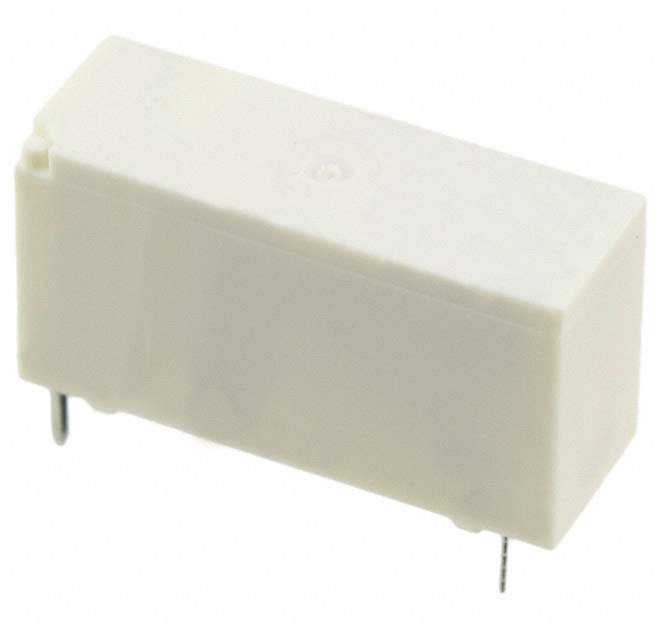

V23061A1009A402 Real Image
Same model may have multiple batches, images only for reference.

V23061A1009A402

Part No V23061A1009A402
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 8A 48V
Datasheet
V23061A1009A402 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Series MSR, SCHRACK
Packaging Tube
Relay Type General
Coil Type Non Latching
Coil Current 5.5mA
Coil Voltage 48VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 8A
Switching Voltage 400VAC - Max
Turn On Voltage (Maximum) 32.6 VDC
Turn Off Voltage (Minimum) 4.8 VDC
Operate Time 10ms
Release Time 5ms
Features Insulation - Class A, Sealed - Fully
Mounting Style Through Hole
Termination Style PC Pin
Contact Material Silver Cadmium Oxide (AgCdO)
Coil Power 262 mW
Coil Resistance 8.79 kOhms
Operating Temperature Range -40°C ~ 85°C
Win Source Part Number 766587-V23061A1009A402
Popularity Medium
Supply and Demand Status Limited
Family Name V23061
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian V23061A1009A402 CAD Model

Description

TE Connectivity Potter & Brumfield Relays 766587-V23061A1009A402 is a general-purpose, non-latching relay with a SPST-NO (1 Form A) contact form.

  • Coil Voltage: 48VDC
  • Coil Resistance: 8.79 kOhms
  • Contact Rating: 8A
  • Switching Voltage: 400VAC - Max
  • Sealed: Fully Sealed
  • Insulation Class: A
  • Operating Temperature: -40°C to 85°C
  • Packaging: Tube
  • Supply and Demand Status: Limited
