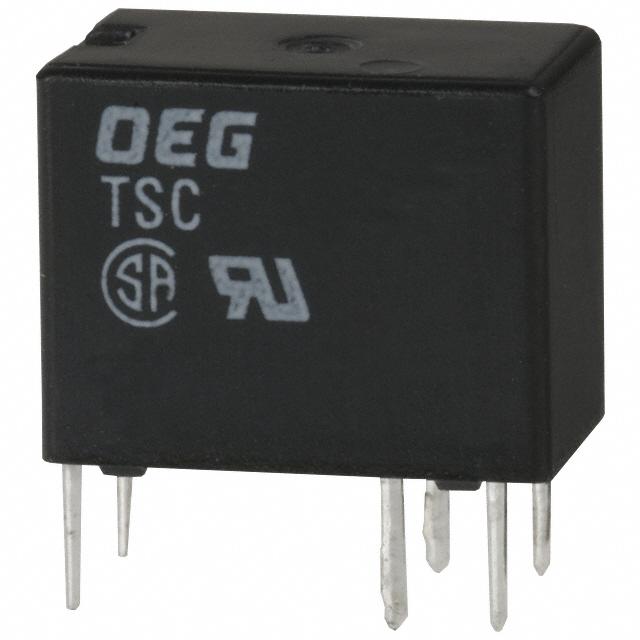

TSC-112L3H TE Connectivity
Same model may have multiple batches, images only for reference.

TSC-112L3H

Part No TSC-112L3H
Manufacturer TE Connectivity
Catalog Signal Relays, Up to 2 Amps
Description RELAY TELECOM SPDT 1A 12V
Datasheet
TSC-112L3H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type Telecom
Coil Type Non Latching
Coil Current 12.5mA
Coil Voltage 12VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 1A
Switching Voltage 120VAC, 30VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 5ms
Release Time 5ms
Features Sealed - Fully
Mounting Through Hole
Termination Style PC Pin
Coil Power 150 mW
Coil Resistance 960 Ohms
Temperature Range - Operating -30°C to 80°C
Win Source Part Number 382156-TSC-112L3H
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TSC-112L3H CAD Model

Description

The TSC-112L3H, manufactured by TE Connectivity Potter & Brumfield Relays, is a medium-popularity electronic component.

  • Manufacturer: TE Connectivity Potter & Brumfield Relays
  • Product Name: TSC-112L3H
  • Type: sealed, fully-featured SPDT (1 Form C) relay type
  • Mounting: through-hole mounting
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 1A
  • Win Source Part Number: 382156-TSC-112L3H
