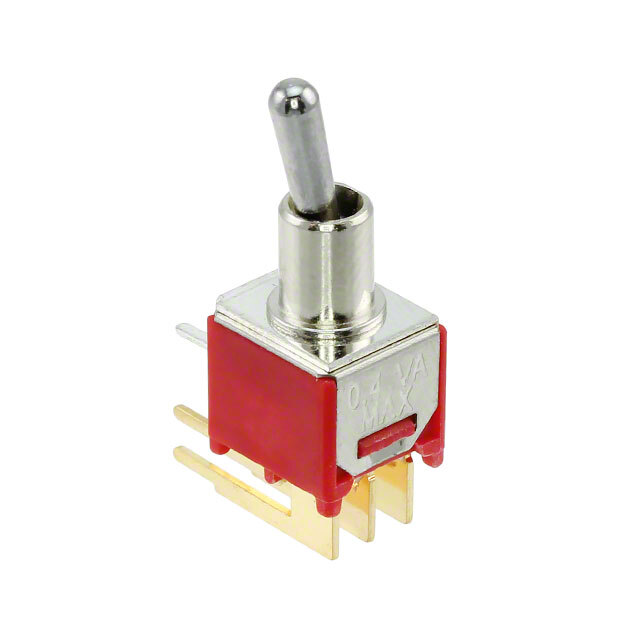

Same model may have multiple batches, images only for reference.
TMS6T1B1M1QE TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

TMS6T1B1M1QE

Part No TMS6T1B1M1QE
Manufacturer TE Connectivity
Catalog Toggle Switches
Description SWITCH TOGGLE SPST 3A 120V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting Type Panel Mount
Circuit SPST
Switch Function On-Off
Current Rating (Amps) 3A (AC/DC)
Voltage Rating - AC 120 V
Voltage Rating - DC 28 V
Actuator Type Standard Round
Actuator Length 9.40mm
Illumination Non-Illuminated
Termination Style Solder Lug
Panel Cutout Dimensions Circular - 4.95mm Dia
Bushing Thread 10-48
Features Process Sealed
Temperature Range - Operating -30°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1565147-TMS6T1B1M1QE
Ultra Librarian 3D Model Ultra Librarian TMS6T1B1M1QE CAD Model

Description
