Same model may have multiple batches, images only for reference.

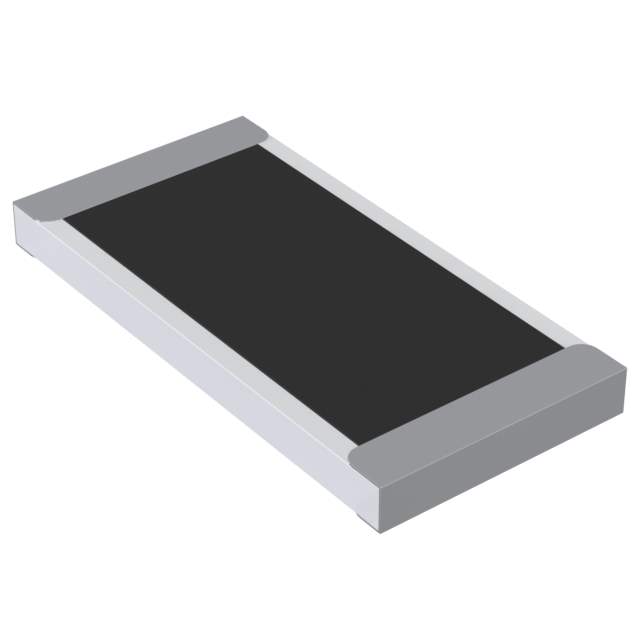

TLR3A20DR0015FTDG Real Image
Same model may have multiple batches, images only for reference.

TLR3A20DR0015FTDG

Part No TLR3A20DR0015FTDG
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 0.0015 OHM 1% 2W 2512 / 1.5 mOhms ±1% 2W Chip Resistor 2512 (6432 Metric) Current Sense Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TLR, CGS
Package Tape & Reel
Resistance 1.5 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Foil
Features Current Sense
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Dimension 0.252" L x 0.126" W (6.40mm x 3.20mm)
Height - Seated (Max) 0.024" (0.60mm)
Number of Terminations 2
Base Product Number TLR3A20
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Other Names TLR3A20DR0015FTDG-ND,A131776TR,A131776DKR,A131776CT,1-1879378-0
Standard Package 2,000
Win Source Part Number 1188197-TLR3A20DR0015FTDG
Ultra Librarian 3D Model Ultra Librarian TLR3A20DR0015FTDG CAD Model

Description

The TLR3A20DR0015FTDG is a metal foil chip resistor from TE Connectivity Passive Product's TLR series. It is designed for use in current sensing applications and has a resistance of 1.5 mOhms with a tolerance of ±1%.

  • Resistance: 1.5 mOhms
  • Tolerance: ±1%
  • Power Rating: 2W
  • Temperature Coefficient: ±50ppm/°C
  • Package: 2512 (6432 Metric)
  • Temperature Range: -55°C ~ 170°C
  • Packaging: Tape and Reel
  • Standard Package: 2,000 units
