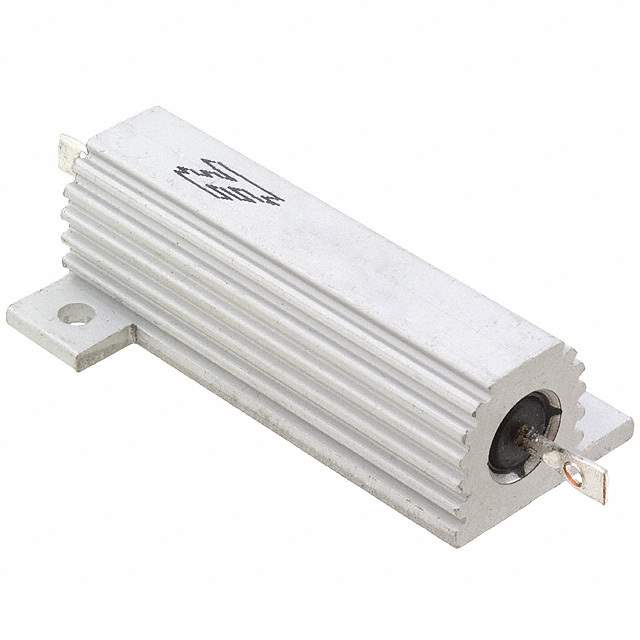

THS5022RJ Real Image
Same model may have multiple batches, images only for reference.

THS5022RJ

Part No THS5022RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 22 OHM 5% 50W  /  22 Ohms ±5% 50W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series THS, CGS
Package Tray
Resistance 22 Ohms
Tolerance ±5%
Power (Watts) 50W
Composition Wirewound
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.008" L x 1.181" W (51.00mm x 30.00mm)
Height - Seated (Max) 0.669" (17.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number THS50
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 2-1879071-9,2-1879071-9-ND,A132046,THS5022RJ-ND
Standard Package 100
Win Source Part Number 1063495-THS5022RJ
Ultra Librarian 3D Model Ultra Librarian THS5022RJ CAD Model

Description

The TE Connectivity Passive Product THS5022RJ is a chassis mount resistor that has a resistance of 22 Ohms manufactured by TE Connectivity Passive Product.

  • Resistance: 22 Ohms
  • Power: 50W
  • Tolerance: ±5%
  • Temperature Coefficient: ±50ppm/°C
  • Temperature Range: -55°C to 200°C
  • Packaging: Tray
  • Height: 0.669" (17.00mm)
  • Standard Package Quantity: 100
