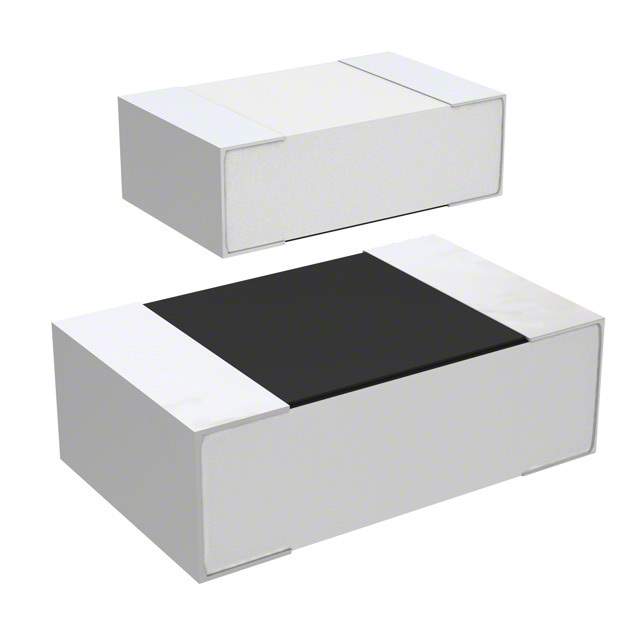

TCR0805N330K Real Image
Same model may have multiple batches, images only for reference.

TCR0805N330K

Part No TCR0805N330K
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series TCR, Neohm
Package Tape & Reel (TR)
Resistance 330 kOhms
Tolerance 0%, -10%
Power (Watts) 0.1W, 1/10W
Composition Thick Film
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 125°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number TCR0805
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1314926-TCR0805N330K
Ultra Librarian 3D Model Ultra Librarian TCR0805N330K CAD Model

Description

The TCR, Neohm series of chip resistors offered by TE Connectivity Passive Product is a thick film type with a resistance of 330 kOhms.

  • Technology: Thick Film
  • Resistance: 330 kOhms
  • Tolerance: 0%, -10%
  • Temperature Coefficient: ±200ppm/°C
  • Power (Watts): 0.1W, 1/10W
  • Package / Case: 0805 (2012 Metric)
  • Operating Temperature: -55°C ~ 125°C
  • Size / Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
