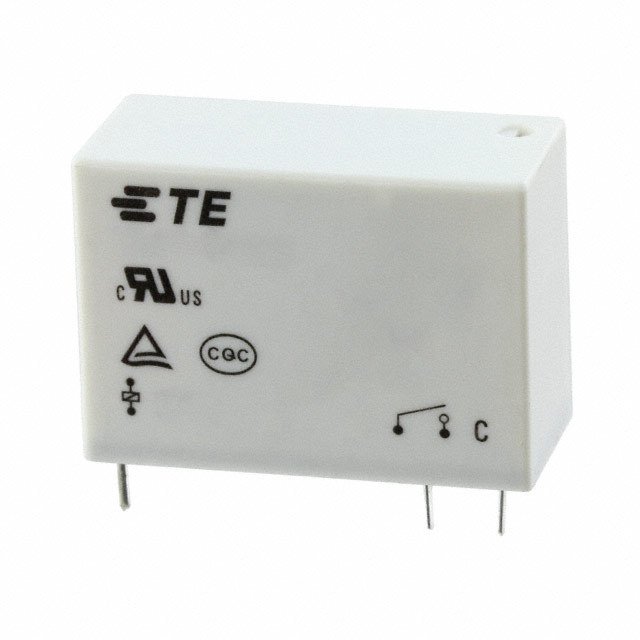

OZ-SS-112LM1F TE Connectivity
Same model may have multiple batches, images only for reference.

OZ-SS-112LM1F

Part No OZ-SS-112LM1F
Manufacturer TE Connectivity
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE SPST 16A 12V
Datasheet
OZ-SS-112LM1F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Relays
Manufacturer TE Connectivity Potter & Brumfield Relays
Packaging Tube/Rail
Status Active
Relay Type General Purpose
Coil Type Non Latching
Coil Current 44.4mA
Coil Voltage 12VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 16A
Switching Voltage 240VAC, 24VDC - Max
Turn On Voltage (Max) 9 VDC
Turn Off Voltage (Min) 0.6 VDC
Operate Time 20ms
Release Time 8ms
Features Insulation - Class F, Sealed - Flux Protection
Mounting Through Hole
Termination Style PC Pin
Coil Power 540 mW
Coil Resistance 270 Ohms
Temperature Range - Operating -30°C to 105°C
Win Source Part Number 209530-OZ-SS-112LM1F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian OZ-SS-112LM1F CAD Model

Description

The TE Connectivity Potter & Brumfield Relays OZ-SS-112LM1F is a general-purpose electronic component product that has a Win Source Part Number of 209530.

  • Win Source Part Number: 209530
  • Supply and Demand Status: Balanced
  • Contact Form: SPST-NO (1 Form A)
  • Coil Voltage: 12VDC
  • Contact Rating (Current): 16A
  • Switching Voltage: 240VAC, 24VDC - Max
  • Temperature Range: -30°C to 105°C
  • Suitable for: Home appliances, HVAC systems, and industrial equipment
