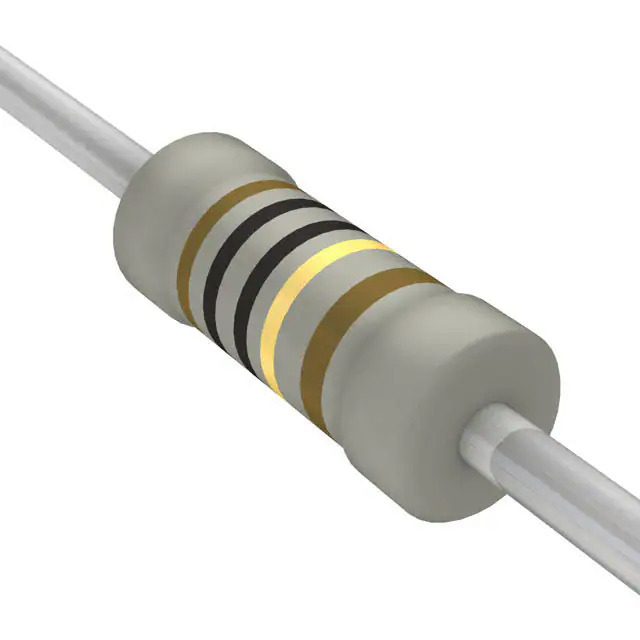

LR1F10R TE Connectivity
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr TE Connectivity Passive Product
Series LR, Neohm
Product Status Active
Resistance 10 Ohms
Tolerance ±1%
Power (Watts) 0.6W
Composition Metal Film
Features -
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
Height - Seated (Max) -
Number of Terminations 2
Failure Rate -
Base Product Number LR1F
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0090
Win Source Part Number 1374957-LR1F10R
Ultra Librarian 3D Model Ultra Librarian LR1F10R CAD Model

Description

The TE Connectivity Passive Product LR1F10R is a through-hole resistor from the LR, Neohm series.

  • Category: Resistors - Through Hole
  • Operating Temperature: -55°C to 155°C
  • Resistance: 10 Ohms
  • Power Rating: 0.6W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Composition: Metal Film
  • Terminations: 2
  • Size: 0.091" Dia x 0.244" L (2.30mm x 6.20mm)
