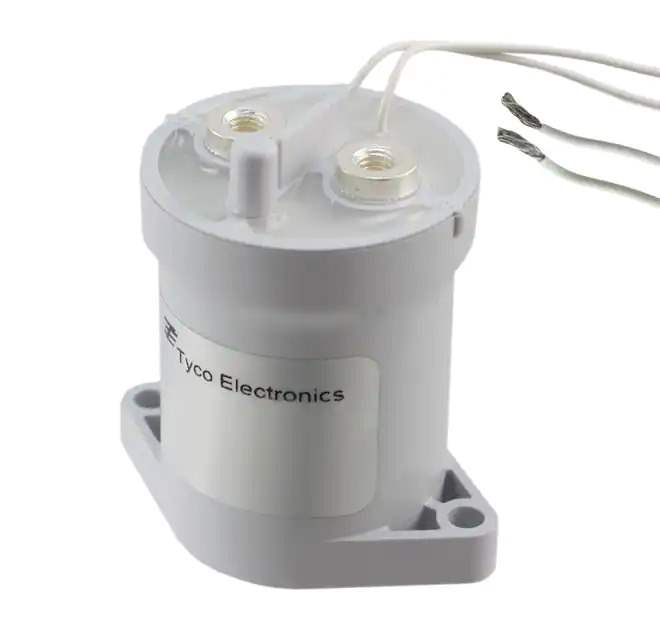

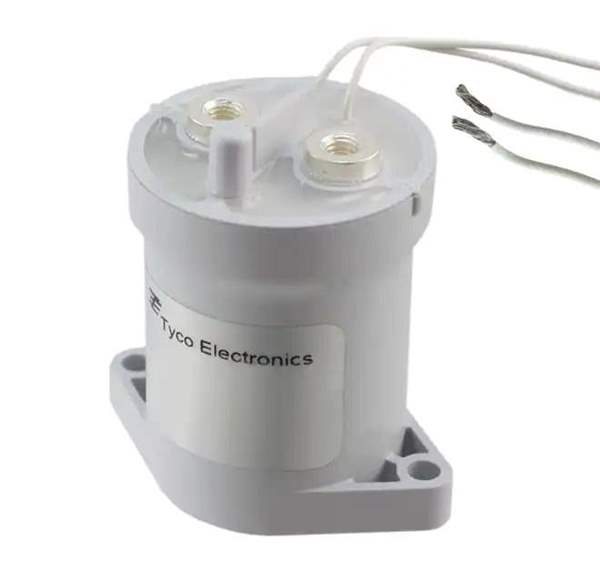

LEV100A5ANG Real Image
Same model may have multiple batches, images only for reference.

LEV100A5ANG

Part No LEV100A5ANG
Manufacturer TE Connectivity
Catalog Contactors (Electromechanical)
Description RELAY CONTACTOR SPST 100A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Contactors (Electromechanical)
Mfr TE Connectivity
Series LEV100, KILOVAC
Package Bulk
Product Status Active
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (DM) (1 Form X)
Contact Rating (Current) 100 A
Switching Voltage 900VDC - Max
Features Sealed - Hermetically
Termination Style Stud
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 16 VDC
Must Release Voltage 2.4 VDC
Operate Time 25 ms
Release Time 10 ms
Coil Current 250 mA
Coil Power 6W
Coil Resistance 96Ohms
Base Product Number LEV100
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.41.0045
Win Source Part Number 877003-LEV100A5ANG
Ultra Librarian 3D Model Ultra Librarian LEV100A5ANG CAD Model

Description

The LEV100 KILOVAC series contactors are reliable and high-performance electromechanical relays.

  • Design: Sealed and hermetically sealed
  • Contact Form: SPST-NO (DM)
  • Coil Voltage: 24VDC
  • Coil Resistance: 96Ohms
  • Contact Rating: 100A
  • Switching Voltage: 900VDC
  • Mounting: Chassis mount
  • Temperature Range: -40°C to 85°C
  • Manufacturer: TE Connectivity
