Same model may have multiple batches, images only for reference.

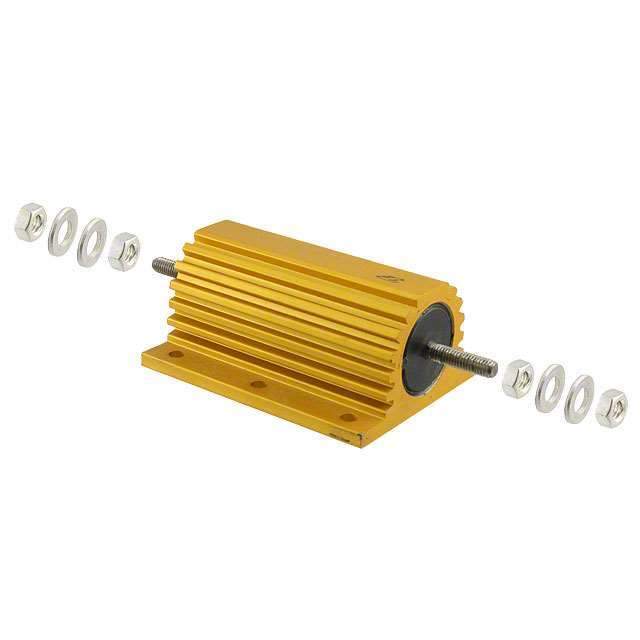

HSC200220RJ Real Image
Same model may have multiple batches, images only for reference.

HSC200220RJ

Part No HSC200220RJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 220 OHM 5% 200W / 220 Ohms ±5% 200W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 220 Ohms
Tolerance ±5%
Power (Watts) 200W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 3.543" L x 2.874" W (90.00mm x 73.00mm)
Height - Seated (Max) 1.654" (42.00mm)
Lead Style Terminal Screw Type
Package / Case Axial, Box
Base Product Number HSC200
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 1-1630019-2,A102380,116300192,1-1630019-2-ND
Standard Package 2
Win Source Part Number 1183538-HSC200220RJ
Ultra Librarian 3D Model Ultra Librarian HSC200220RJ CAD Model

Description

The HSC200220RJ is a Chassis Mount Resistor from TE Connectivity Passive Product.

  • Resistance: 220 Ohms
  • Tolerance: ±5%
  • Power: 200W
  • Temperature Range: -55°C to 200°C
  • Packaging: Bulk
  • Standard Package: 2 units
