Same model may have multiple batches, images only for reference.

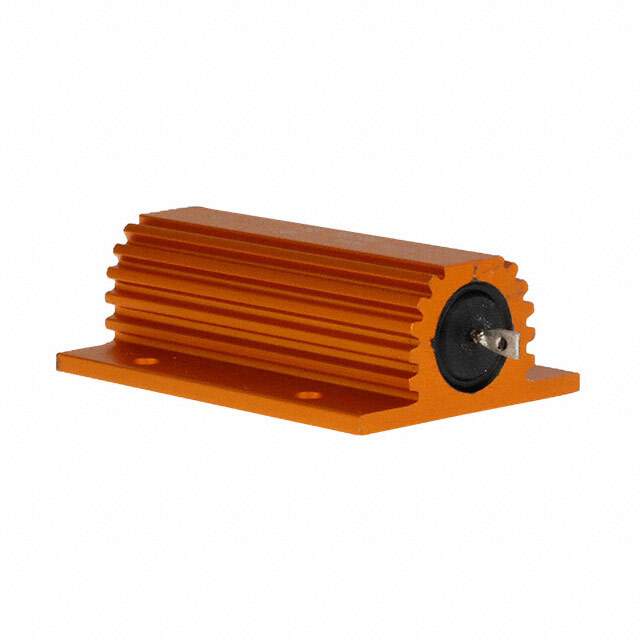

HSC10050KJ Real Image
Same model may have multiple batches, images only for reference.

HSC10050KJ

Part No HSC10050KJ
Manufacturer TE Connectivity
Catalog Chassis Mount Resistors
Description RES CHAS MNT 50K OHM 5% 100W / 50 kOhms ±5% 100W Wirewound Chassis Mount Resistor
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chassis Mount Resistors
Mfr TE Connectivity Passive Product
Series HS, CGS
Package Bulk
Resistance 50 kOhms
Tolerance ±5%
Power (Watts) 100W
Composition Wirewound
Temperature Coefficient ±30ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Coating, Housing Type Aluminum
Mounting Feature Flanges
Dimension 2.579" L x 1.870" W (65.50mm x 47.50mm)
Height - Seated (Max) 1.024" (26.00mm)
Lead Style Solder Lugs
Package / Case Axial, Box
Base Product Number HSC100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.29.0000
Other Names 4-1625999-1,4-1625999-1-ND,416259991,A102365
Standard Package 10
Win Source Part Number 1094216-HSC10050KJ
Ultra Librarian 3D Model Ultra Librarian HSC10050KJ CAD Model

Description

The TE Connectivity Passive Product HSC10050KJ is a chassis mount resistor that has a resistance of 50 kOhms and a power of 100W.

  • Resistance: 50 kOhms
  • Power: 100W
  • Tolerance: ±5%
  • Temperature Coefficient: ±30ppm/°C
  • Height: 1.024" (26.00mm)
  • Dimension: 2.579" L x 1.870" W (65.50mm x 47.50mm)
  • Manufacturer: TE Connectivity Passive Product
