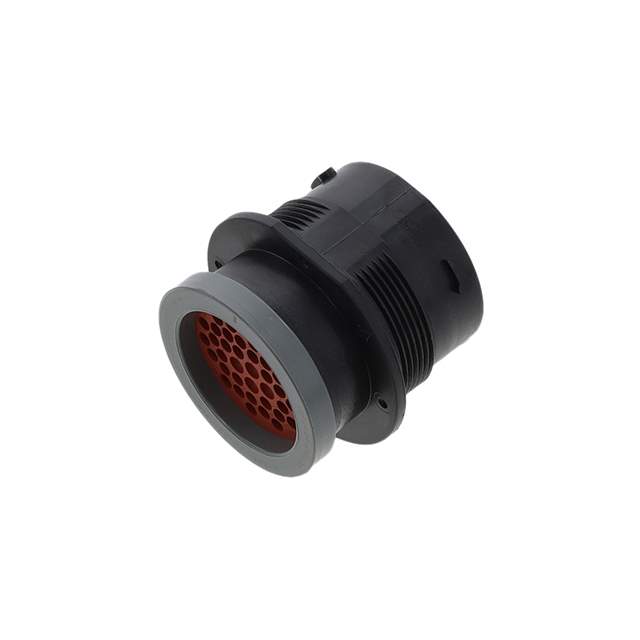

HDP24-24-47PE-L017 Real Image
Same model may have multiple batches, images only for reference.

HDP24-24-47PE-L017

Part No HDP24-24-47PE-L017
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Description CONN RCPT HSNG MALE 47POS PNL MT / 47 Position Circular Connector Receptacle Housing Panel Mount Dust Cap, Ring Adapter
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors>Circular Connector Housings
Manufacturer TE Connectivity Deutsch Connectors
Packaging Bulk
Connector Type Receptacle Housing
Type For Male Pins
Number of Positions 47
Shell Size - Insert 24-47
Contact Type Crimp
Contact Size 16 (5), 20 (42)
Mounting Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Polyamide (PA66), Nylon 6/6, Glass Filled
Housing Color Black, Blue
Ingress Protection IP68 - Dust Tight, Waterproof
Material Flammability Rating UL94 V-1
Features Dust Cap, Ring Adapter
Shielding Unshielded
Note Contacts Not Included; Jam Nut Not Included
Insert Material Polyetherimide (PEI)
Contact Shape Circular
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HDP24
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8538.90.6000
Other Part Number 1734-1211,-HDP24-24-47PE-L017-SI
Standard Package 30
Win Source Part Number 1334558-HDP24-24-47PE-L017
Ultra Librarian 3D Model Ultra Librarian HDP24-24-47PE-L017 CAD Model

Description

This 47-position receptacle housing from TE Connectivity Deutsch Connectors is designed for use with male pins.

  • Features: Dust Cap and Ring Adapter
  • Durability: Highly durable and suitable for use in a variety of applications.
  • Environment: Designed to withstand harsh environments
  • Ingress Protection: IP68 for dust tightness and waterproofing.
  • Housing Material: Polyamide (PA66) and nylon 6/6, glass-filled shell material
  • Insert Material: Polyetherimide (PEI)
  • Housing Color: Black and Blue
  • Mounting: Panel Mounting
  • Fastening Type: Bayonet Lock
  • Orientation: Keyed
  • Material Flammability: UL94 V-1
  • Operating Temperature: Between -55°C to 125°C
