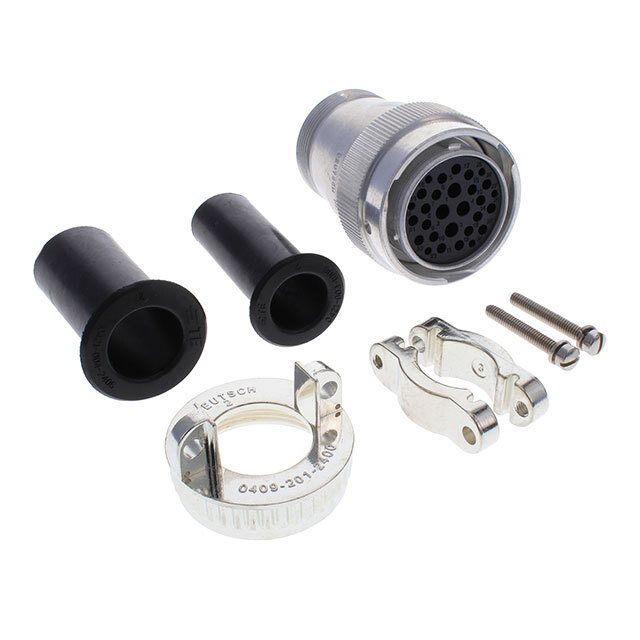

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Connector Type Plug Housing
Type For Female Sockets
Number of Positions 29
Shell Size - Insert 24-29
Contact Type Crimp
Contact Size 12 (4), 16 (19), 20 (6)
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation Keyed
Shell Material Aluminum
Housing Color Silver
Ingress Protection IP67 - Dust Tight, Waterproof
Features Backshell, Cable Clamp
Shielding Unshielded
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1611774-HD36-24-29SE-059
Ultra Librarian 3D Model Ultra Librarian HD36-24-29SE-059 CAD Model
