Category Switches>DIP Switches
Manufacturer TE Connectivity ALCOSWITCH Switches
Packaging Tube
Product Status Obsolete
Circuit SPST
Number of Positions 4
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.091" (2.30mm)
Mounting Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -30°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.244" (6.20mm)
Mechanical Life 1,000 Cycles
Electrical Life 1,000 Cycles
Base Product Number GDH04
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Part Number 1-1437590-4,450-1261
Standard Package 70
Win Source Part Number 1323775-GDH04S
Ultra Librarian 3D Model Ultra Librarian GDH04S CAD Model

Description

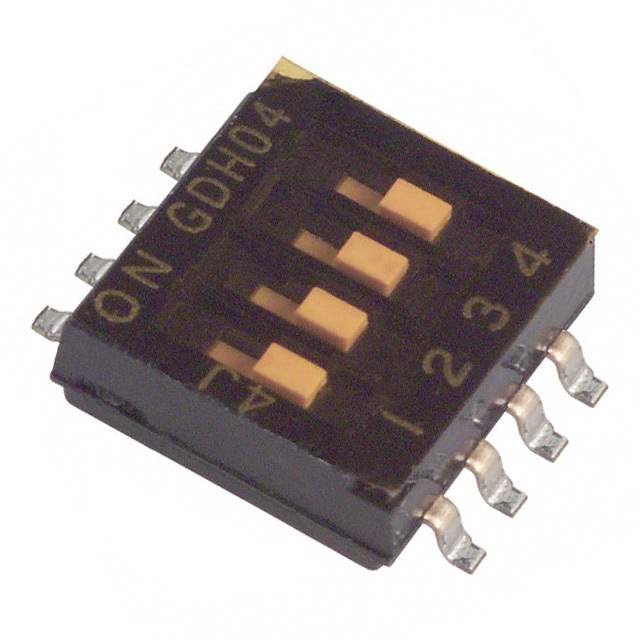

The GDH04S is a surface mount SPST DIP switch with a tape seal feature from TE Connectivity ALCOSWITCH Switches.

  • Mounting Type: Surface Mount
  • Number of Positions: 4
  • Pitch: 0.050" (1.27mm), Half
  • Termination Style: Gull Wing
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Height Above Board: 0.091" (2.30mm)
  • Length: 0.244" (6.20mm)
  • Body Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Electrical Life: 1,000 Cycles
  • Mechanical Life: 1,000 Cycles
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Operating Temperature: -30°C ~ 85°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 25mA
  • REACH Unaffected: Yes
  • HTSUS: 8536.50.9065
  • Base Product Number: GDH04
  • Status: Obsolete
  • RoHS Compliant: No
