Products specifications Report Issue?

Category Resistors - Through Hole Resistors
Mfr TE Connectivity Passive Product
Series EP, Neohm
Package Bag
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 9W
Composition Wirewound
Features Flame Retardant Coating, Pulse Withstanding, Safety
Temperature Coefficient ±400ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case Axial
Supplier Device Package Axial
Size / Dimension 0.335" Dia x 1.575" L (8.50mm x 40.00mm)
Number of Terminations 2
Base Product Number EP9W
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1350146-EP9WS10RJ
Ultra Librarian 3D Model Ultra Librarian EP9WS10RJ CAD Model

Description

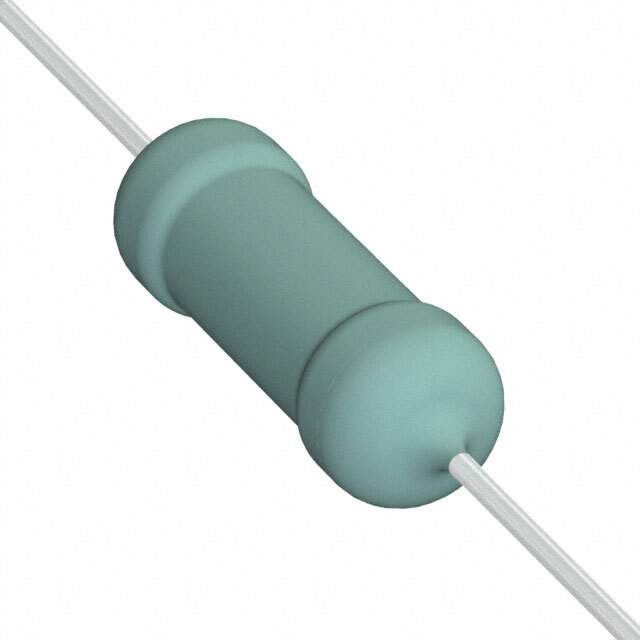

The EP9WS10RJ is a through hole resistor from TE Connectivity Passive Product.

  • Resistance: 10 Ohms
  • Power Rating: 9W
  • Tolerance: ±5%
  • Composition: Wirewound
  • Temperature Coefficient: ±400ppm/°C
  • Operating Temperature Range: -55°C to 155°C
  • Features: Flame Retardant Coated and Pulse Withstanding
  • Packaging: Axial
  • Package Quantity: Bag of 10
