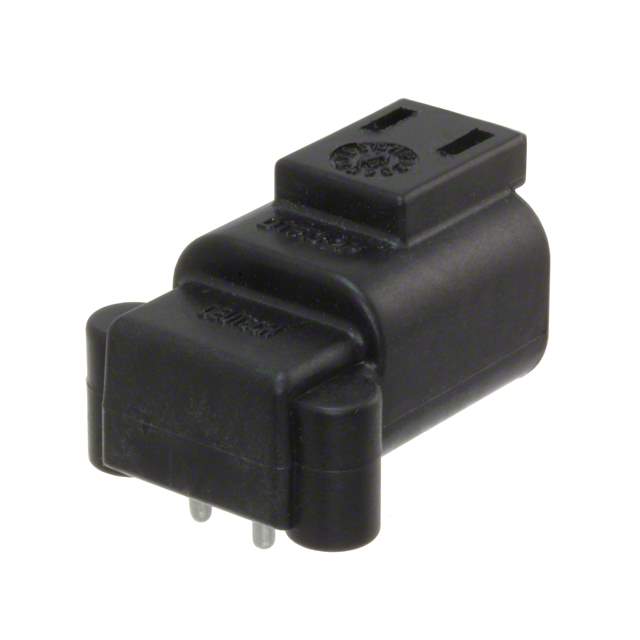

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity Deutsch Connectors
Series DTF
Package Bulk
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.215" (5.46mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Latch Holder
Contact Length - Post 0.120" (3.05mm)
Insulation Height 0.760" (19.30mm)
Contact Shape Circular
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Copper Alloy
Insulation Material Thermoplastic
Temperature Range - Operating -55°C ~ 125°C
Insulation Color Black
Applications Automotive
Base Product Number DTF13
Standard Package 1
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1342282-DTF13-2P
Ultra Librarian 3D Model Ultra Librarian DTF13-2P CAD Model

Description

The TE Connectivity Deutsch Connectors 1342282-DTF13-2P is a two-position male pin header connector.

  • Series: DTF
  • Connector Type: Rectangular Connector
  • Application: Board to Cable/Wire
  • Number of Positions: 2
  • Package: Shrouded 4-Wall
  • Mounting Type: Right Angle Through Hole
  • Pitch-Mating: 0.215 inches (5.46mm)
  • Contact Finish-Mating: Tin
  • Contact Finish-Post: Tin
  • Contact Material: Copper Alloy
  • Insulation Material: Thermoplastic
  • Application: Automotive
  • Operating Temperature: -55°C to 125°C
  • Manufacturer: TE Connectivity Deutsch Connectors
