Same model may have multiple batches, images only for reference.

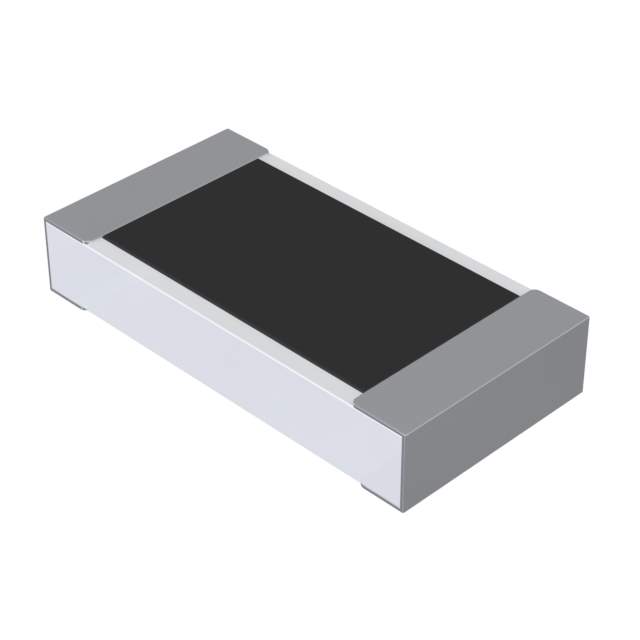

CRGP1206F22K Real Image
Same model may have multiple batches, images only for reference.

CRGP1206F22K

Part No CRGP1206F22K
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES 22K OHM 1% 1/2W 1206 / 22 kOhms ±1% 0.5W, 1/2W Chip Resistor 1206 (3216 Metric) Pulse Withstanding Thick Film
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series CRGP
Package Tape & Reel
Resistance 22 kOhms
Tolerance ±1%
Power (Watts) 0.5W, 1/2W
Composition Thick Film
Features Pulse Withstanding
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Dimension 0.122" L x 0.061" W (3.10mm x 1.55mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Base Product Number CRGP1206
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 4-2176328-1,A130554TR,A130554CT,A130554DKR
Standard Package 5,000
Win Source Part Number 1220558-CRGP1206F22K
Ultra Librarian 3D Model Ultra Librarian CRGP1206F22K CAD Model

Description

The CRGP1206F22K is a chip resistor that belongs to the CRGP series manufactured by TE Connectivity Passive Product.

  • Series: CRGP
  • Feature: Pulse-withstanding
  • Package: Tape and Reel
  • Height - Seated (Max): 0.026 inches
  • Standard Package: 5,000
  • Tolerance: ±1 percent
  • Temperature Coefficient: ±100ppm/°C
  • Power: 0.5W or 1/2W
  • Composition: Thick Film
  • Terminations: 2
  • Resistance: 22 kOhms
  • Package/Case: 1206 (3216 Metric)
  • Supplier Device Package: 1206
  • Operating Temperature: -55°C to 155°C
  • Dimension: 0.122 inches L x 0.061 inches W (3.10mm x 1.55mm)
  • ECCN: EAR99
  • REACH Status: REACH unaffected
  • HTSUS: 8533.21.0030
