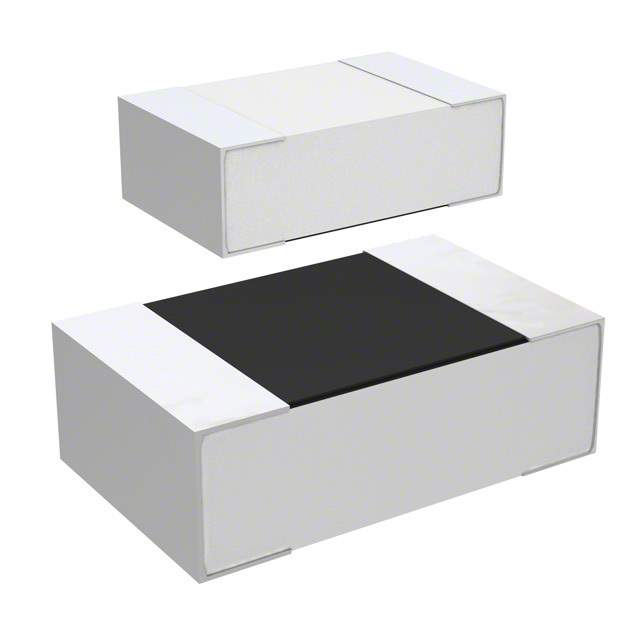

The CRG0805F150K is a thick film chip resistor manufactured by TE Connectivity. This surface mount resistor is designed for general purpose applications requiring a stable and reliable resistance value.

Applications:

• General Electronic Circuits: Current limiting, voltage division, and pull-up/pull-down resistor applications in various electronic devices.
• Power Supplies: Current sensing and voltage regulation in power supply circuits.
• Automotive Electronics: Resistors in automotive control units and sensor circuits.
• Consumer Electronics: Resistors in mobile phones, computers, and other consumer devices.
• Industrial Equipment: Resistors in industrial control systems and instrumentation.

Features:

• Surface Mount Technology (SMT): Designed for automated assembly on printed circuit boards (PCBs).
• 0805 Package Size: Industry-standard 0805 footprint (2.0mm x 1.25mm).
• Thick Film Construction: Provides good stability and reliability.
• 15 Ohm Resistance: Specific resistance value of 15 Ohms.
• 5% Tolerance: Resistance value is within 5% of the nominal value.
• Power Rating: Rated for a specific power dissipation (typically 0.125W or 1/8W).
• RoHS Compliant: Compliant with Restriction of Hazardous Substances directive.

Benefits:

• Compact Size: Small footprint allows for high-density circuit designs.
• Easy Assembly: Surface mount design simplifies automated assembly processes.
• Reliable Performance: Thick film construction provides stable resistance values over a wide temperature range.
• Wide Availability: Standard package size and resistance value ensures easy sourcing.
• Cost-Effective: Economical solution for general purpose resistor applications.

Additional Details:

The CRG0805F150K resistor has a temperature coefficient of resistance (TCR) that specifies how much the resistance changes with temperature. The TCR is typically specified in ppm/°C. The resistor is designed to operate within a specific temperature range, typically from -55°C to +155°C. The resistor's rated voltage is the maximum voltage that can be applied across the resistor without exceeding its power rating. Proper handling and storage are important to maintain the resistor's performance and reliability. This includes avoiding exposure to excessive moisture or corrosive environments. The resistor should be reflow soldered onto the PCB according to the manufacturer's recommended soldering profile.
