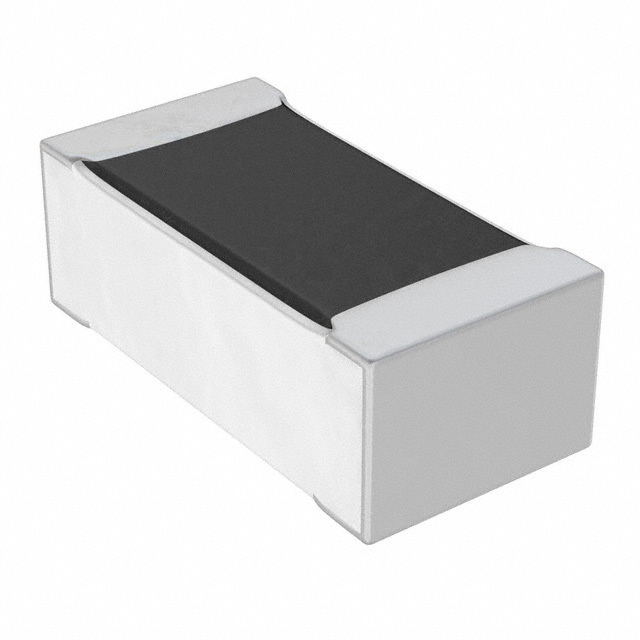

Same model may have multiple batches, images only for reference.
CPF0402B360RE1 TE Connectivity – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CPF0402B360RE1

Part No CPF0402B360RE1
Manufacturer TE Connectivity
Catalog Chip Resistor - Surface Mount
Description RES SMD 360 OHM 0.1% 1/16W 0402
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Resistance 360 Ohms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.014" (0.35mm)
Number of Terminations 2
Package Tape & Reel
Supply and Demand Status Limited
Win Source Part Number 1583143-CPF0402B360RE1
Ultra Librarian 3D Model Ultra Librarian CPF0402B360RE1 CAD Model
