Same model may have multiple batches, images only for reference.

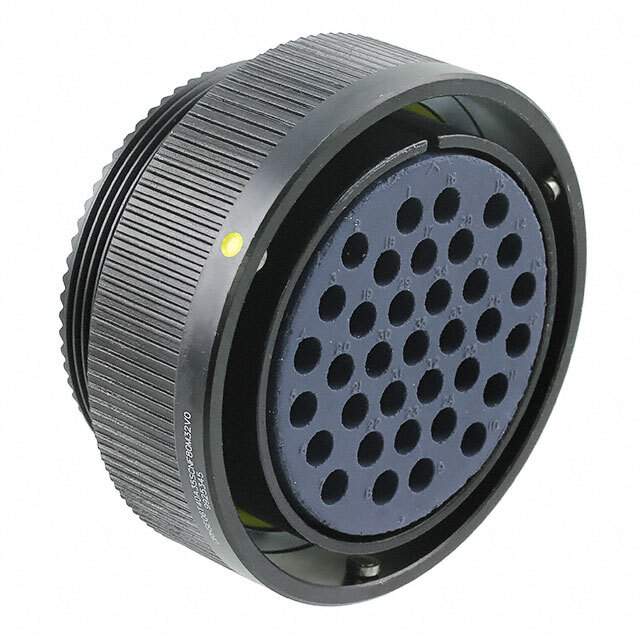

CIRHSE06T40A35SCNF80M32V0 Real Image
Same model may have multiple batches, images only for reference.

CIRHSE06T40A35SCNF80M32V0

Part No CIRHSE06T40A35SCNF80M32V0
Manufacturer TE Connectivity
Catalog Circular Connectors - Housings
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Circular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CIRH
Package Bulk
Connector Type Plug Housing
Type For Female Sockets
Number of Positions 35
Shell Size - Insert 40-A35
Contact Type Crimp
Contact Size 12
Mounting Type Free Hanging (In-Line)
Fastening Type Bayonet Lock
Orientation N (Normal)
Shell Material Aluminum Alloy
Shell Finish Zinc Cobalt
Housing Color Black
Ingress Protection IP67 - Dust Tight, Waterproof
Features Coupling Nut
Shielding Shielded
Note Contacts Not Included
Insert Material Rubber, Halogen Free
Contact Shape Circular
Temperature Range - Operating -55°C ~ 200°C
Base Product Number CIRHSE06
MSL Level Not Applicable
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 1315020-CIRHSE06T40A35SCNF80M32V0
Ultra Librarian 3D Model Ultra Librarian CIRHSE06T40A35SCNF80M32V0 CAD Model

Description

The TE Connectivity AMP Connectors 1315020-CIRHSE06T40A35SCNF80M32V0 is a circular connector housing for female sockets. It has 35 positions and a coupling nut feature.

  • Connector Type: Circular Connector Housing
  • Contact Type: Female Socket
  • Number of Positions: 35
  • Features: Coupling Nut
  • Housing Type: Plug Housing
  • Contact Termination: Crimp
  • Fastening Type: Bayonet Lock
  • Contact Size: 12
  • Ingress Protection: IP67 - Dust Tight and Waterproof
  • Shielded: Yes
  • Orientation: N (Normal)
  • Housing Color: Black
  • Mounting Type: Free Hanging (In-Line)
  • Contact Shape: Circular
  • Operating Temperature: -55°C to 200°C
  • Shell Material: Aluminum Alloy
  • Shell Finish: Zinc Cobalt
  • Insert Material: Rubber, Halogen-Free
