Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr TE Connectivity Passive Product
Series C, CGS
Package Tape & Box (TB)
Resistance 18 Ohms
Tolerance ±5%
Power (Watts) 3W
Composition Wirewound
Temperature Coefficient ±90ppm/°C
Temperature Range - Operating -55°C ~ 200°C
Package / Case Axial
Supplier Device Package Axial
Dimension 0.224" Dia x 0.512" L (5.70mm x 13.00mm)
Number of Terminations 2
MSL Level Not Applicable
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8533.21.0080
Win Source Part Number 1315231-C3A18RJT
Ultra Librarian 3D Model Ultra Librarian C3A18RJT CAD Model

Description

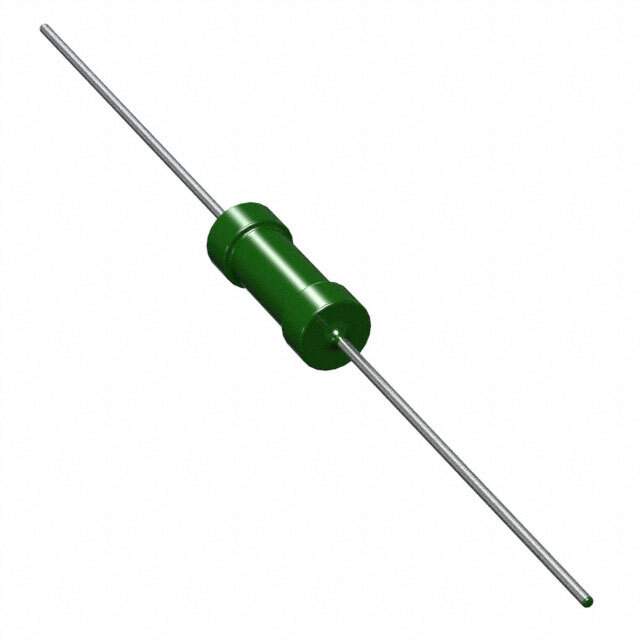

This resistor, part of the C and CGS series, is a wirewound composition with a power of 3W and a resistance of 18 Ohms.

  • Series: C and CGS
  • Composition: Wirewound
  • Power: 3W
  • Resistance: 18 Ohms
  • Tolerance: ±5%
  • Temperature Coefficient: ±90ppm/°C
  • Package: Axial
  • Terminations: 2
  • Operating Temperature Range: -55°C to 200°C
