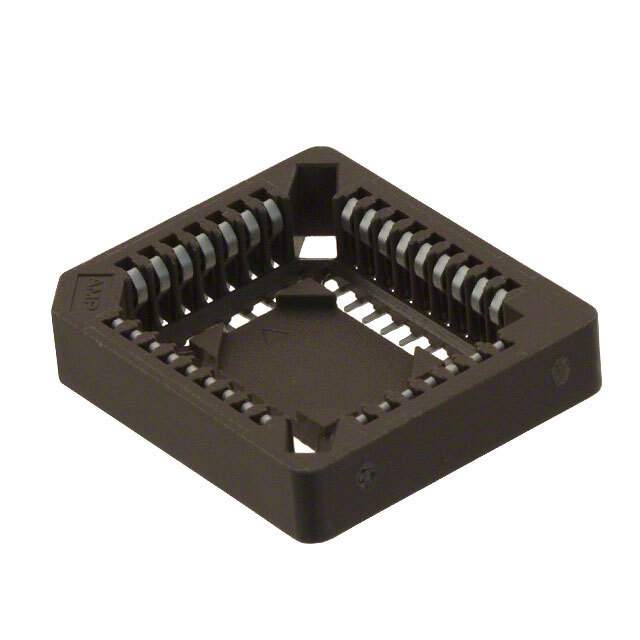

822516-7 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity AMP Connectors
Packaging Tube
Status Obsolete
Type PLCC
Number of Positions or Pins (Grid) 32 (2 x 7, 2 x 9)
Pitch - Mating 0.050" (1.27mm)
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 100.0μin (2.54μm)
Contact Material - Mating Phosphor Bronze
Mounting Style SMD
Features Closed Frame
Termination Solder
Pitch - Post 0.050" (1.27mm)
Contact Finish - Post Tin
Contact Finish Thickness - Post 100.0μin (2.54μm)
Contact Material - Post Phosphor Bronze
Dielectric Material Thermoplastic
Material Flammability Rating UL94 V-0
Manufacturer Pack Quantity 6,820
MSL Level 1 (Unlimited)
Win Source Part Number 1133888-822516-7
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Automotive, Industrial
Ultra Librarian 3D Model Ultra Librarian 822516-7 CAD Model

Description

The TE Connectivity AMP Connectors 1133888-822516-7 is a PLCC type connector designed for surface mount applications.

  • Manufacturer: TE Connectivity AMP Connectors
  • Product: 1133888-822516-7
  • Type: PLCC Connector
  • Mounting: Surface Mount
  • Frame: Closed
  • Termination: Soldered
  • Number of Positions/Pins: 32 (Grid)
  • Pitch: 0.050" (1.27mm)
  • Contact Finish (Mating): Tin, 100.0μin (2.54μm) Thickness
  • Contact Material (Mating): Phosphor Bronze
  • Pitch (Post): 0.050" (1.27mm)
  • Contact Finish (Post): Tin
  • Contact Material (Post): Phosphor Bronze
  • Packaging: Tube
  • Status: Obsolete
  • Applications: Automotive and Industrial
  • Manufacturer Pack Quantity: 6,820 units
