776087-1
Same model may have multiple batches, images only for reference.

776087-1

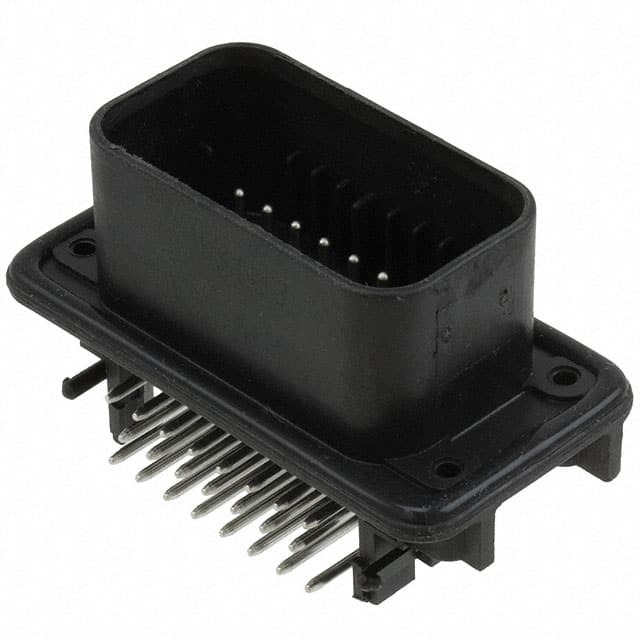

Part No 776087-1
Manufacturer TE Connectivity
Catalog Rectangular Connectors
Description CONN HEADER R/A 23POS 4MM / Connector Header Panel Mount, Through Hole, Right Angle 23 position 0.157" (4.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr TE Connectivity
Series AMPSEAL
Package Bulk
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.157" (4.00mm)
Number of Positions 23
Number of Rows 3
Row Spacing - Mating 0.157" (4.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Panel Mount, Through Hole, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Shape Circular
Contact Finish - Mating Tin
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Features Board Guide, Sealed
Temperature Range - Operating -40°C ~ 105°C
Insulation Color Black
Current Rating (Amps) Varies by Wire Gauge
Voltage Rating 250VAC
Applications Automotive, Industrial
Base Product Number 776087
Standard Package 40 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 847228-776087-1
Ultra Librarian 3D Model Ultra Librarian 776087-1 CAD Model

Description

The 847228-776087-1 is a male pin header connector from TE Connectivity's AMPSEAL series.

  • Product Name: 847228-776087-1
  • Series: AMPSEAL
  • Positions: 23
  • Features: Board Guide, Sealed
  • Material: Brass
  • Voltage Rating: 250VAC
  • Applications: Automotive and Industrial
  • Mounting Type: Through-Hole, Right-Angle
  • Locking Feature: Locking Ramp
  • Package: Bulk
  • Quantity per Package: 40 pcs
