Same model may have multiple batches, images only for reference.

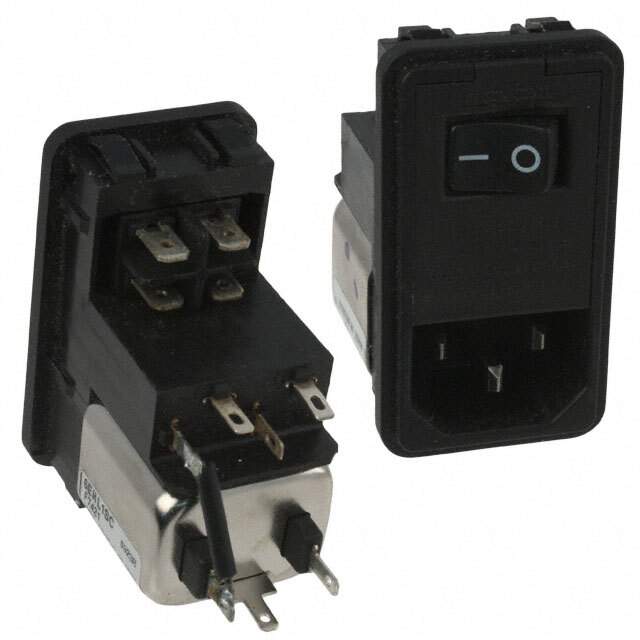

6EHL1SC Real Image
Same model may have multiple batches, images only for reference.

6EHL1SC

Part No 6EHL1SC
Manufacturer TE Connectivity
Catalog Power Entry Connectors - Accessories
Description Power Entry Module with RFI Power Line Filter for General or Medical Applications | PWR ENT MOD RCPT IEC320-C14 PNL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer TE Connectivity Corcom Filters
Packaging Bulk
Connector Style IEC 320-C14
Connector Type Receptacle, Male Blades - Module
Current - IEC 6A
Voltage - IEC 120/250VAC
Current - UL 6A
Voltage - UL 250VAC
Filter Type Filtered (EMI, RFI) - Commercial
Fuse Yes
Number of Positions 3
Mounting Style Panel Mount, Snap-In
Termination Quick Connect - 0.110" (2.8mm)
Switch Features Switch On-Off
Fuse Holder, Drawer Fuse Holder
Panel Thickness 0.031" ~ 0.126" (0.79mm ~ 3.20mm)
Manufacturer Pack Quantity 16
MSL Level 1 (Unlimited)
Win Source Part Number 1129622-6EHL1SC
Manufacturer Homepage www.macom.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 6EHL1SC CAD Model

Description

The 6EHL1SC is a filtered (EMI, RFI) - commercial connector manufactured by TE Connectivity Corcom Filters.

  • Positions: 3
  • Mounting: Panel Mount, Snap-In
  • Current Rating: 6A
  • Voltage Rating (IEC): 120/250VAC
  • Voltage Rating (UL): 250VAC
  • Connector Type: Receptacle, Male Blades - Module
  • Termination: Quick Connect - 0.110" (2.8mm)
  • Switch: On-Off
  • Fuse Holder: Drawer
  • Panel Thickness: 0.031" ~ 0.126" (0.79mm ~ 3.20mm)
  • Popularity: Medium
  • Supply and Demand: Limited
