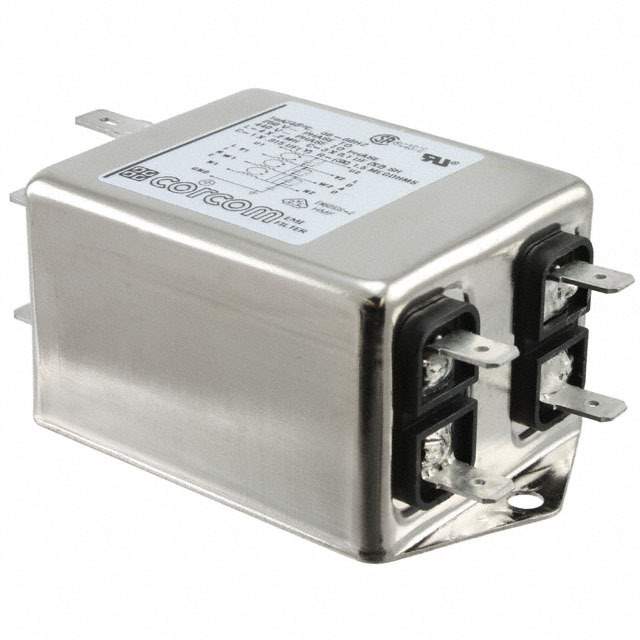

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Filters>Power Line Filter Modules
Mfr TE Connectivity Corcom Filters
Series AYO
Package Bulk
Filter Type Three Phase (Wye)
Configuration Single Stage
Voltage - Rated AC (Phase to Ground/Neutral) 250 V
Voltage - Rated AC (Phase to Phase) 440 V
Current 10 A
Frequency - Operating 50/60Hz
Applications General Purpose
Approval Agency CSA, UR, VDE
Temperature Range - Operating -10°C ~ 40°C
Mounting Type Chassis Mount
Termination Style Quick Connect
Base Product Number 6609066
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names -10AYO1-SI-ND,-10AYO1-SI,-6609066-3-SI,CCM1937,10AYO1,10AYO1-NDR,10AYO1-ND,1609066-3,66090663,6609066-3-ND
Standard Package 10
Win Source Part Number 1106097-6609066-3
Ultra Librarian 3D Model Ultra Librarian 6609066-3 CAD Model

Description

The TE Connectivity Corcom Filters AYO series is a power line filter module that provides three-phase (Wye) filtering.

  • Current Rating: 10A
  • Maximum Voltage: 250V (phase to ground/neutral) and 440V (phase to phase) @ a frequency of 50/60Hz
  • Mounting: chassis mount
  • Temperature Range: -10°C to 40°C
  • RoHS: compliant
  • Package: bulk package
  • Alternative parts: 6609066-310AYO1
